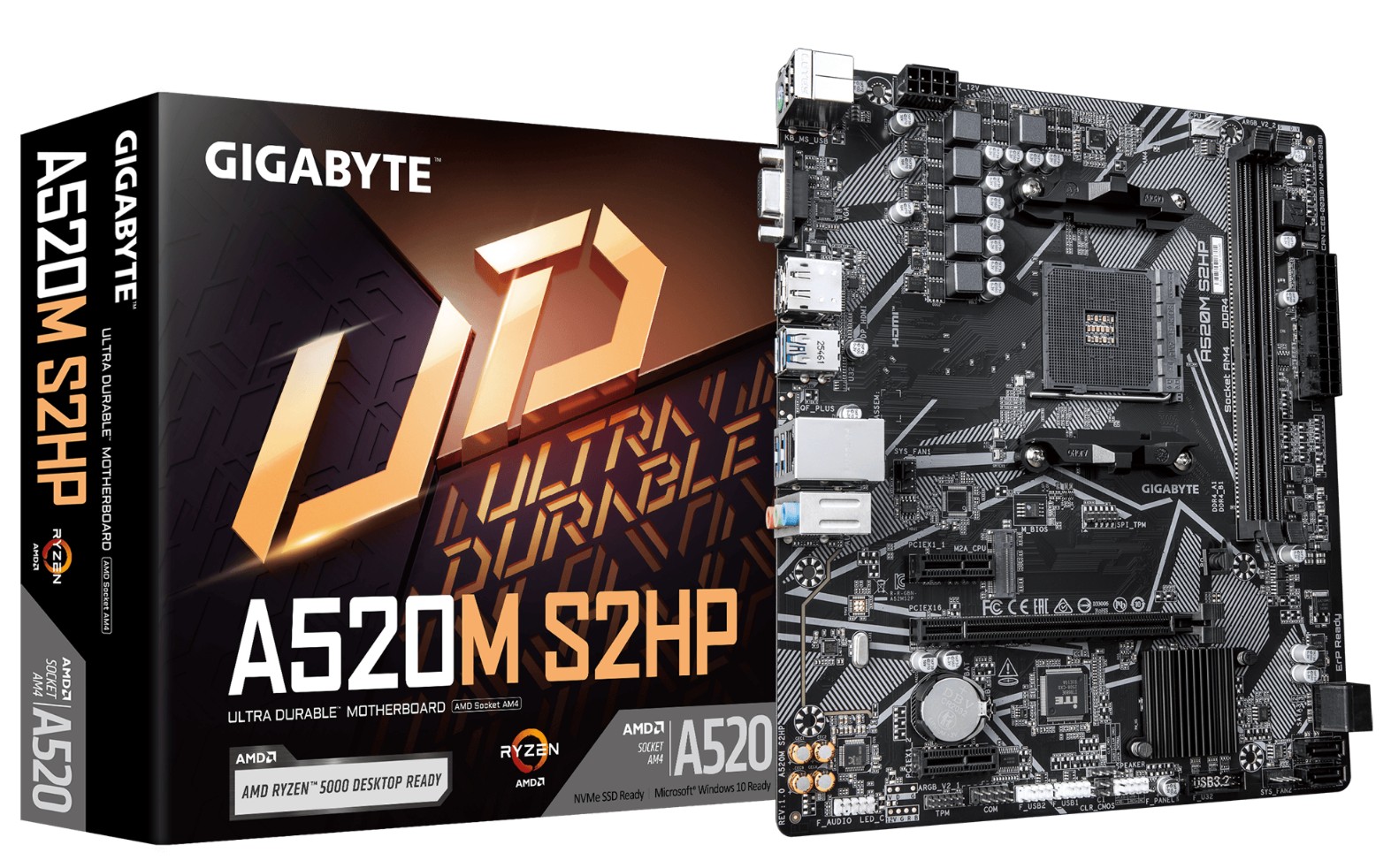

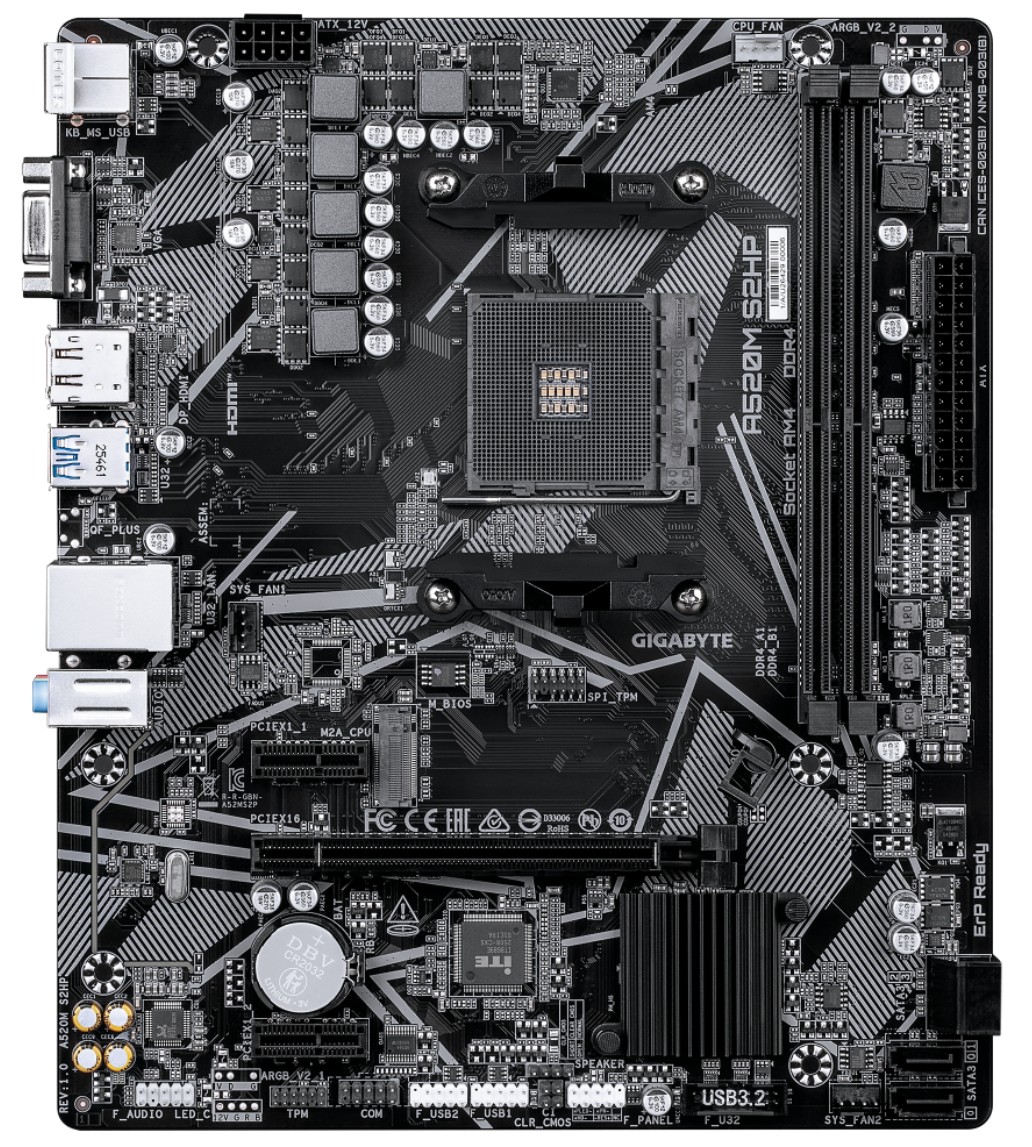

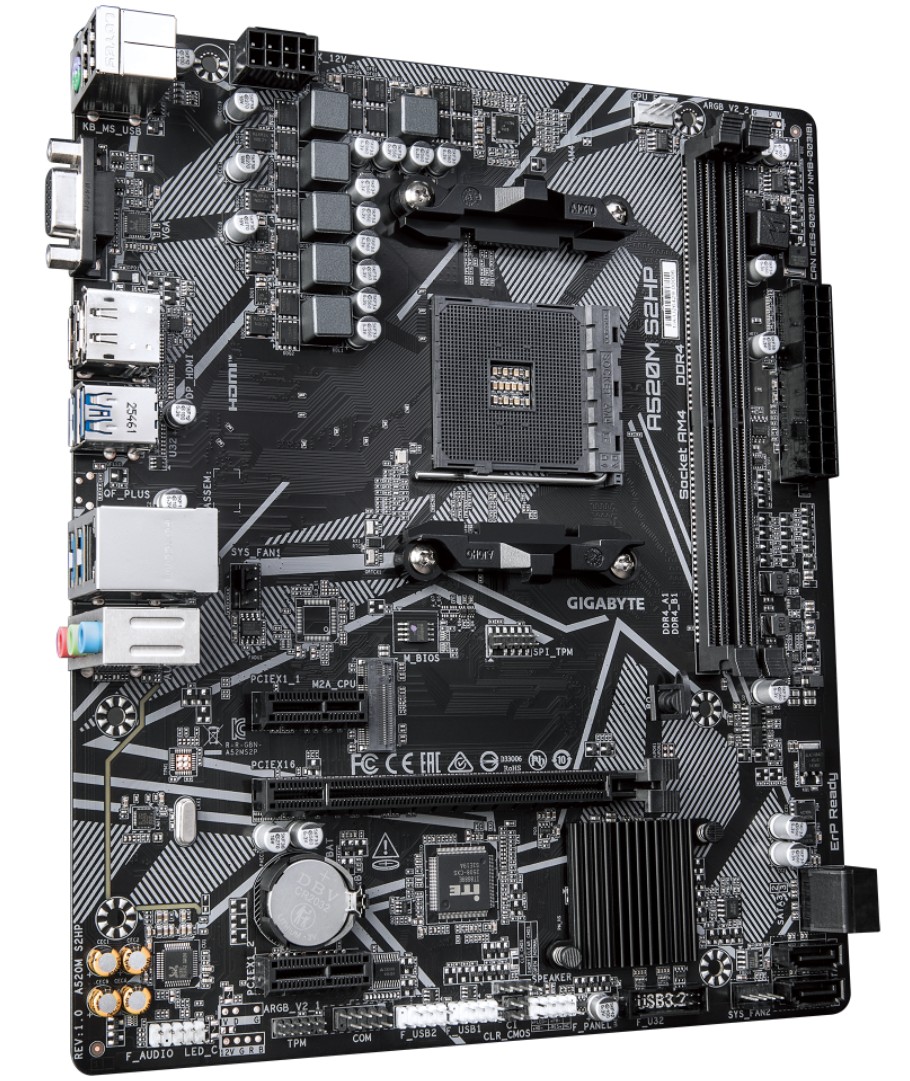

Gigabyte A520M S2HP

Chipset: AMD A520Rozměrový formát: Micro ATX Form Factor; 24.4cm x 20.5cm

Podpora pro procesory:

• AMD Ryzen™ 5000 G-Series Processors/
• AMD Ryzen™ 5000 Series Processors/
• AMD Ryzen™ 4000 G-Series Processors/
• AMD Ryzen™ 3000 G-Series Processors/
• AMD Ryzen™ 3000 Series Processors

Patice procesoru: AM4

Paměť:

• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
• Podpora pro DDR4 3200/2933/2667/2400/2133 MT/s memory modules
• Dual channel memory architecture
• Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Podpora pro Extreme Memory Profile (XMP) memory modules

Grafické porty:Integrated Graphics Processor with AMD Radeon™ Graphics support:

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Zvuková karta:

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Ethernet: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

WLAN + Bluetooth: Ne

Rozšiřující sloty: CPU:

•  1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

• 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor:

• 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280
• SATA and PCIe 3.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors

USB: CPU:

• 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Interní porty: Napájení

• 1× 24-pin ATX main power connector
• 1× 8-pin ATX 12V power connector
• 1× CPU fan header
• 2× system fan headers

Související s úložištěm

• 1× M.2 Socket 3 connector
• 4× SATA 6Gb/s connectors

USB

• 1× USB 3.2 Gen 1 header
• 2× USB 2.0/1.1 headers

Ostatní

• 1× front panel header
• 1× front panel audio header
• 1× Trusted Platform Module header
• 1× serial port header
• 1× speaker header
• 1× chassis intrusion header
• 1× Clear CMOS jumper

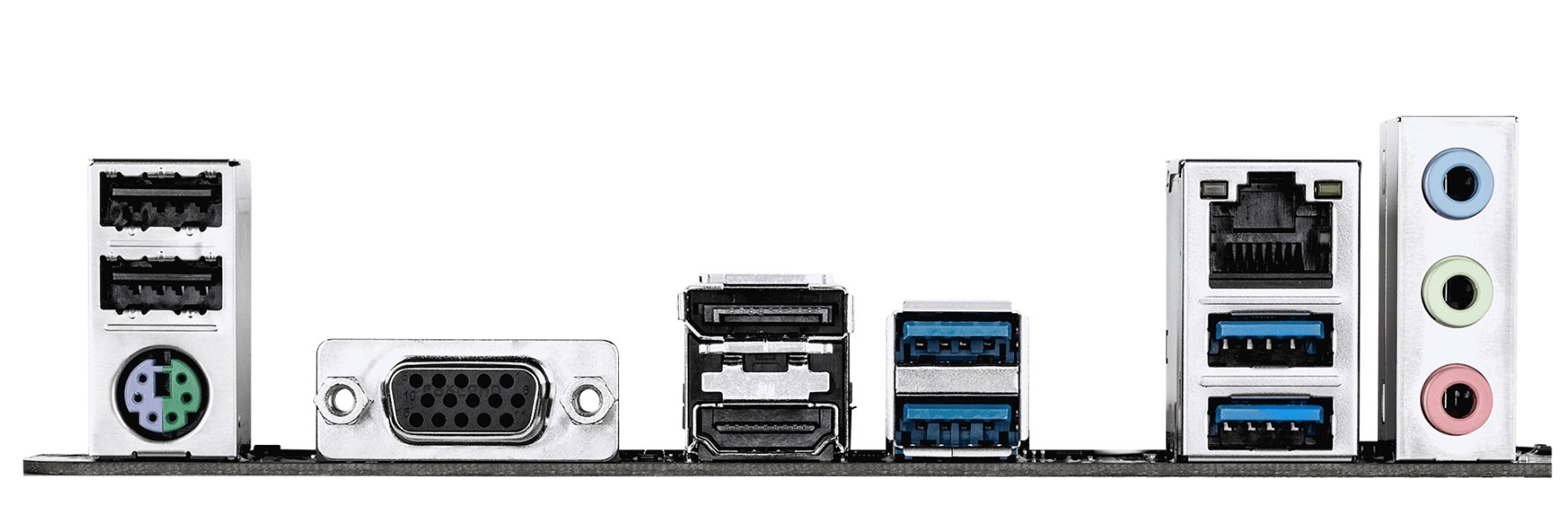

Porty na zadním panelu:

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port (Note)
• 1 x DisplayPort (Note)
• 1 x HDMI port (Note)
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitoring:

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control

OS: Podpora pro Windows 11 64-bit / Windows 10 64-bit
