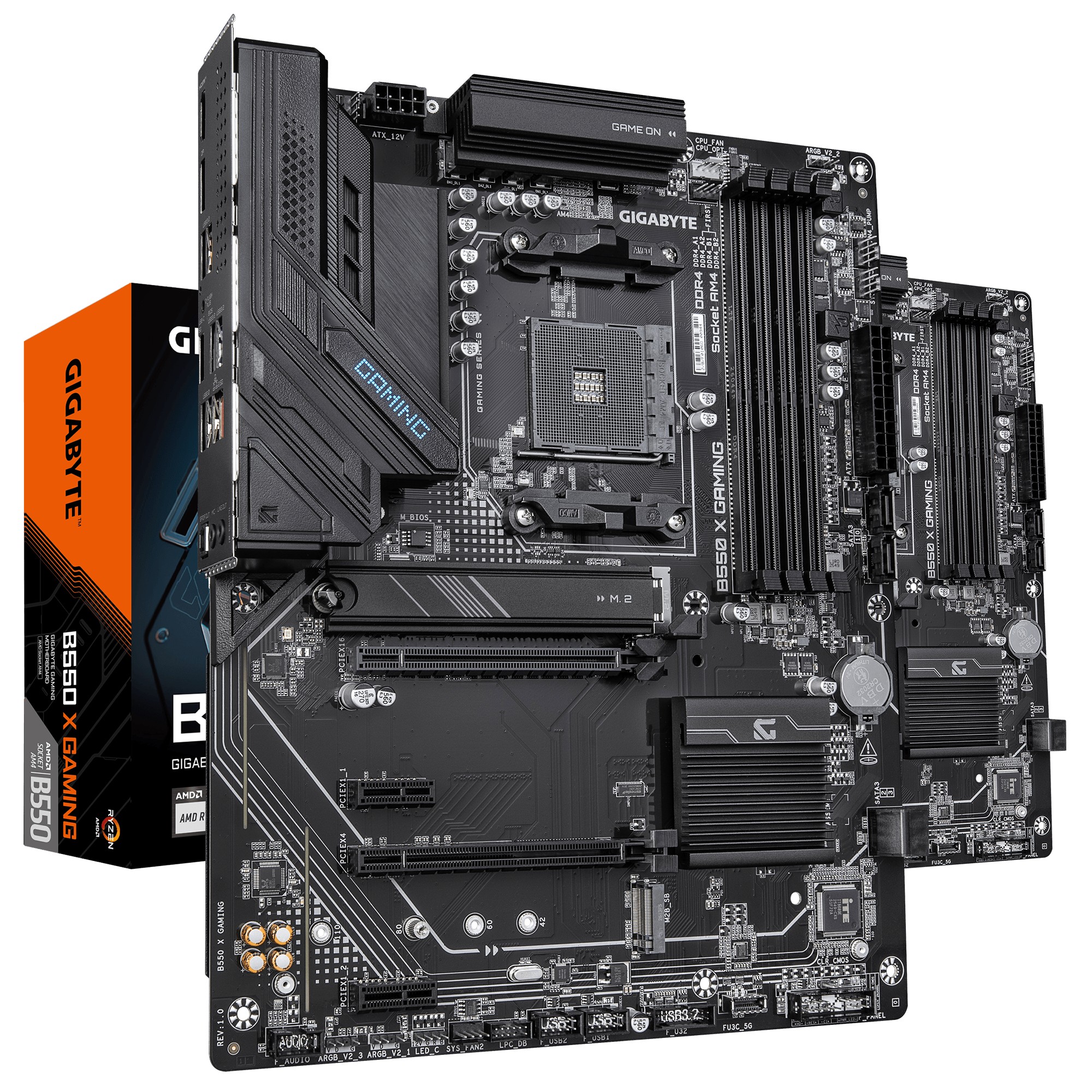

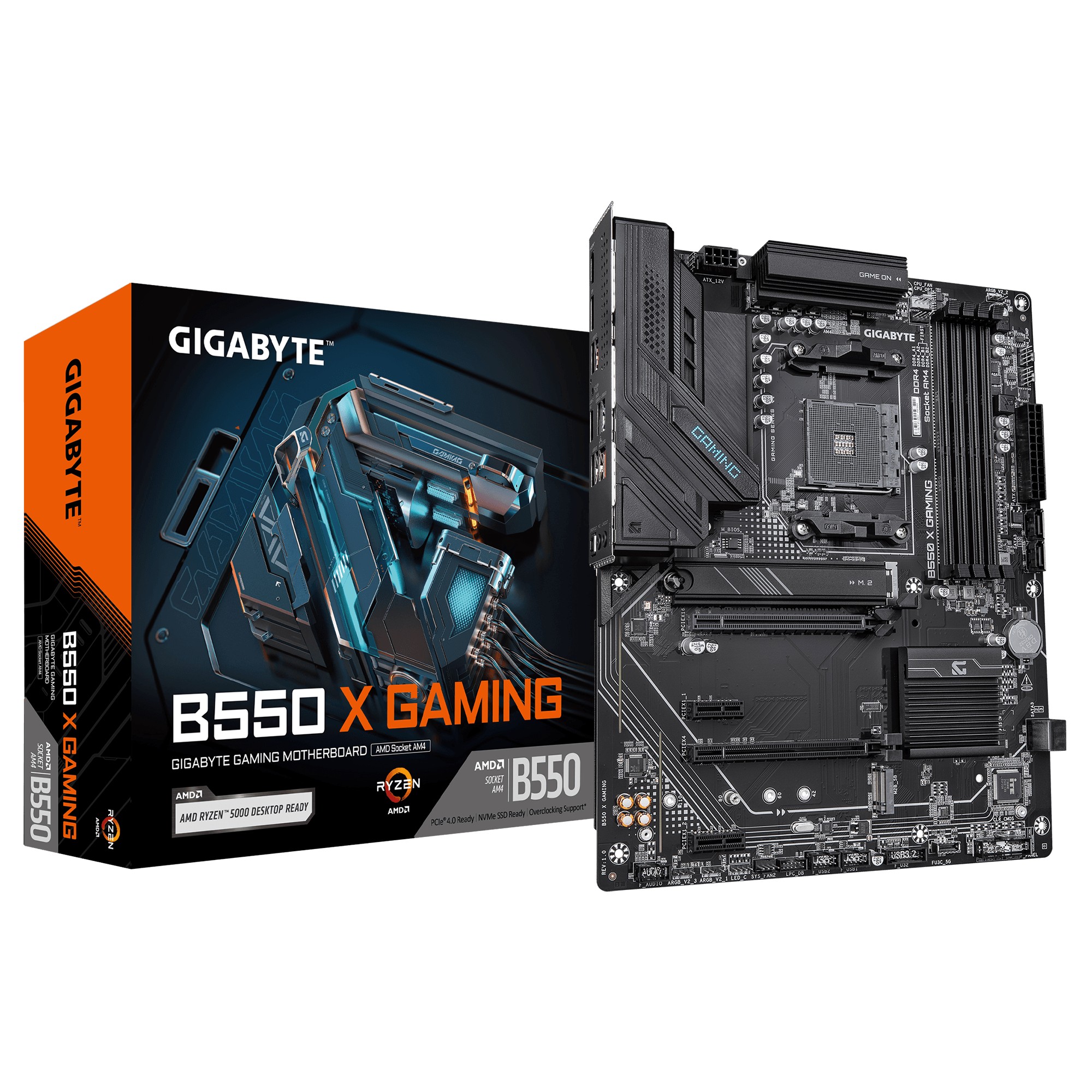

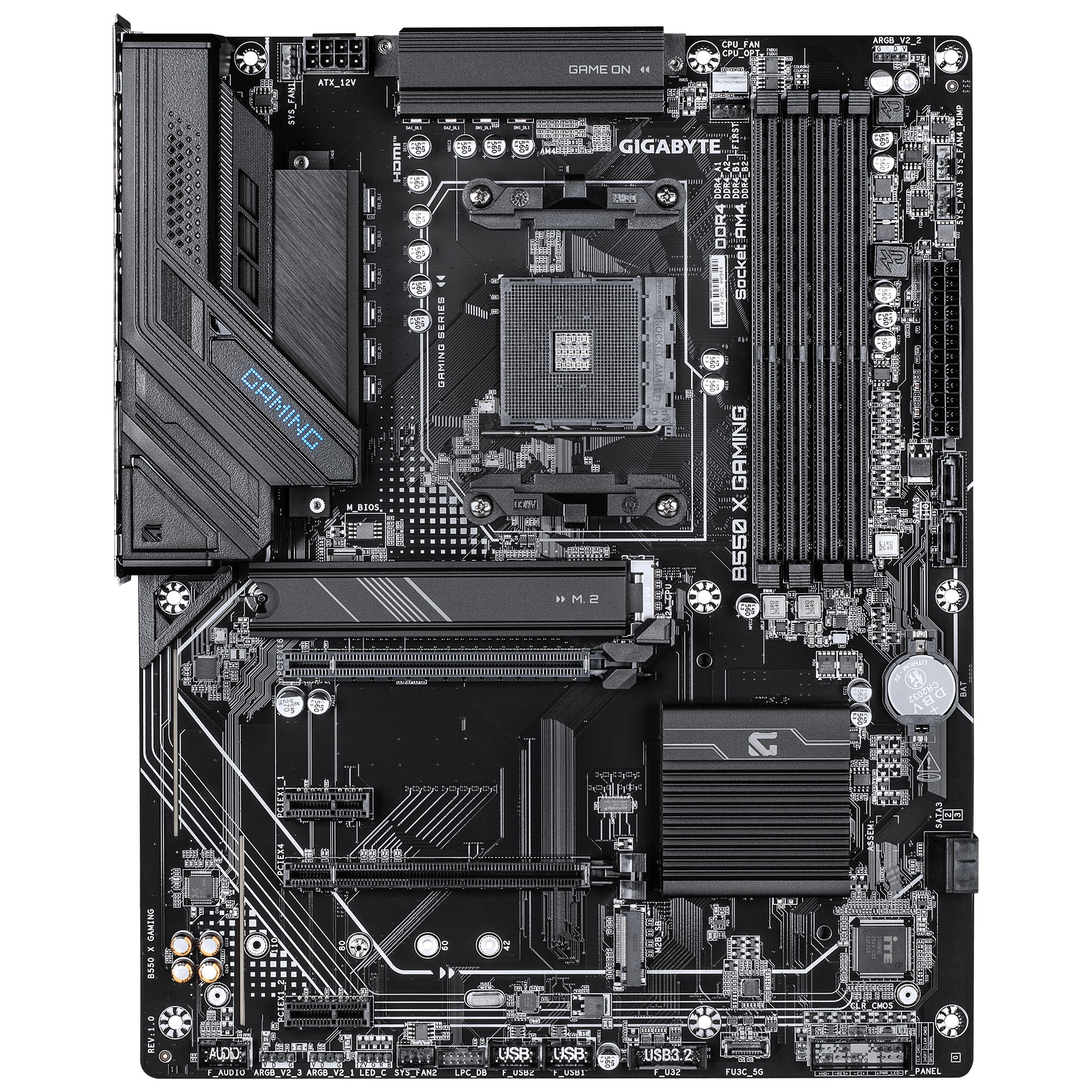

Gigabyte B550 X GAMING (Rev. 1.x)
Chipset: AMD B550
Rozměrový formát: ATX Form Factor; 30.5cm x 24.4cm
Podpora pro procesory:
- AMD Ryzen™ 5000 G-Series Processors
- AMD Ryzen™ 5000 Series Processors
- AMD Ryzen™ 4000 G-Series Processors
- AMD Ryzen™ 3000 G-Series Processors
- AMD Ryzen™ 3000 Series Processors
Patice procesoru: AM4
Paměť:
- 4x DDR DIMM sloty podporující až 128GB (32GB každý slot) paměti
- Podpora pro DDR4 3200/2933/2667/2400/2133 MT/s moduly
- Dual channel memory architecture
- Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 moduly
- Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly
- Podpora pro XMP
Grafické porty:
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Zvuková karta:
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Rozšiřující sloty:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
- Supporting PCIe 3.0 x4 mode
2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
RAID řadič: RAID 0, RAID 1, RAID 10
Úložný prostor:
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset
USB:
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 2 x USB Type-C® ports, with USB 3.2 Gen 1 support (1 port on the back panel, 1 port available through the internal USB header)
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Interní porty:
Napájení
- 1× 24-pin ATX main power connector
- 1× 8-pin ATX 12V power connector
- 1× CPU fan header
- 1× CPU fan / water cooling pump header
- 3× system fan headers
- 1× system fan / water cooling pump header
Související s úložištěm
- 2× M.2 Socket 3 connectors
- 4× SATA 6Gb/s connectors
USB
- 1× USB Type-C header, USB 3.2 Gen 1
- 1× USB 3.2 Gen 1 header
- 2× USB 2.0/1.1 headers
Ostatní
- 3× addressable RGB Gen2 LED strip headers
- 1× RGB LED strip header
- 1× front panel header
- 1× front panel audio header
- 1× Clear CMOS jumper

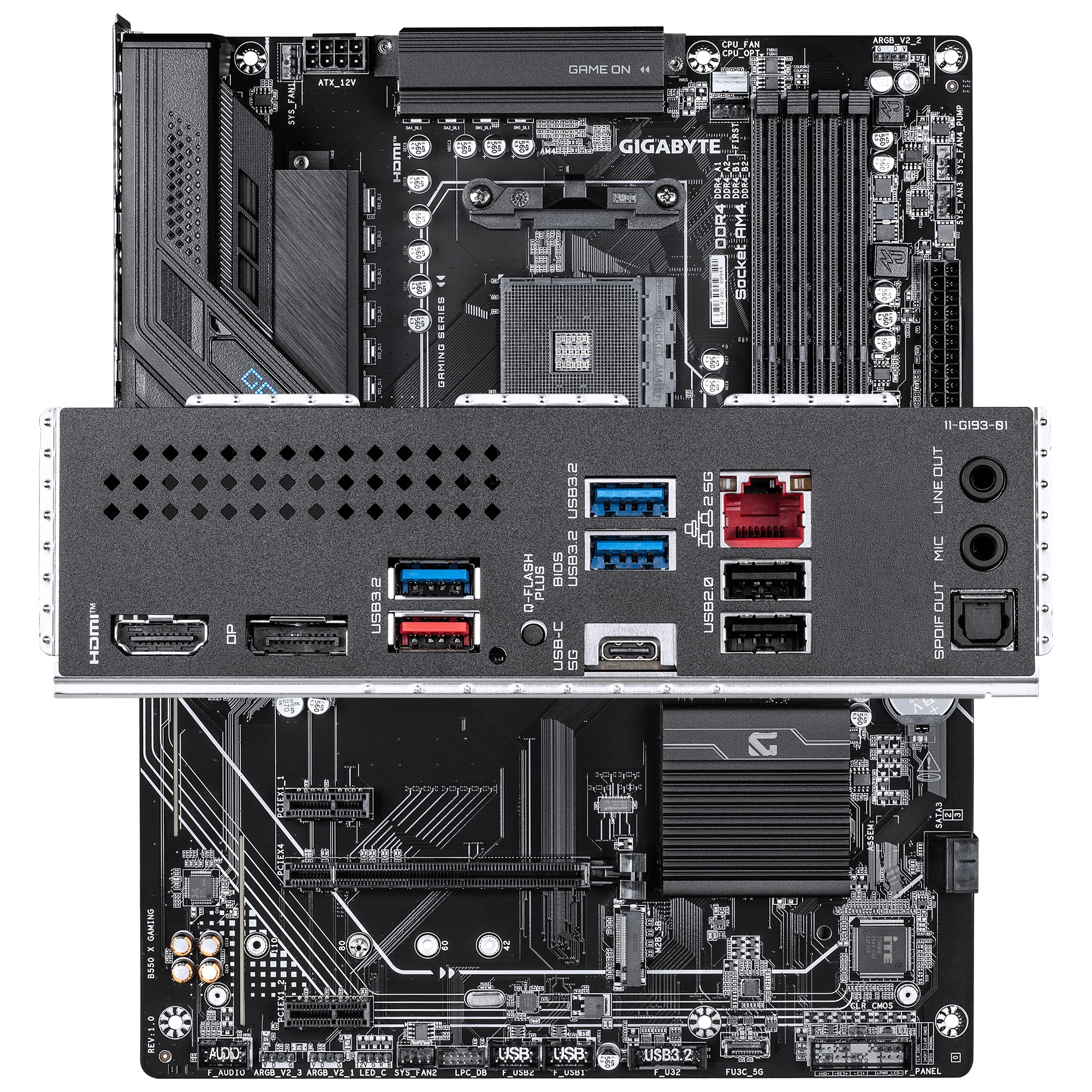

Porty na zadním panelu:
- 1 x HDMI port
- 1 x DisplayPort
- 1 x Q-Flash Plus button
- 2 x antenna connectors (2T2R)
- 1 x USB 3.2 Gen 2 port
- 3 x USB 3.2 Gen 1 ports
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 2 x audio jacks
- 1 x optical S/PDIF Out connector
BIOS:
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
H/W Monitorování
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
OS: Podpora pro Windows 11 64-bit
