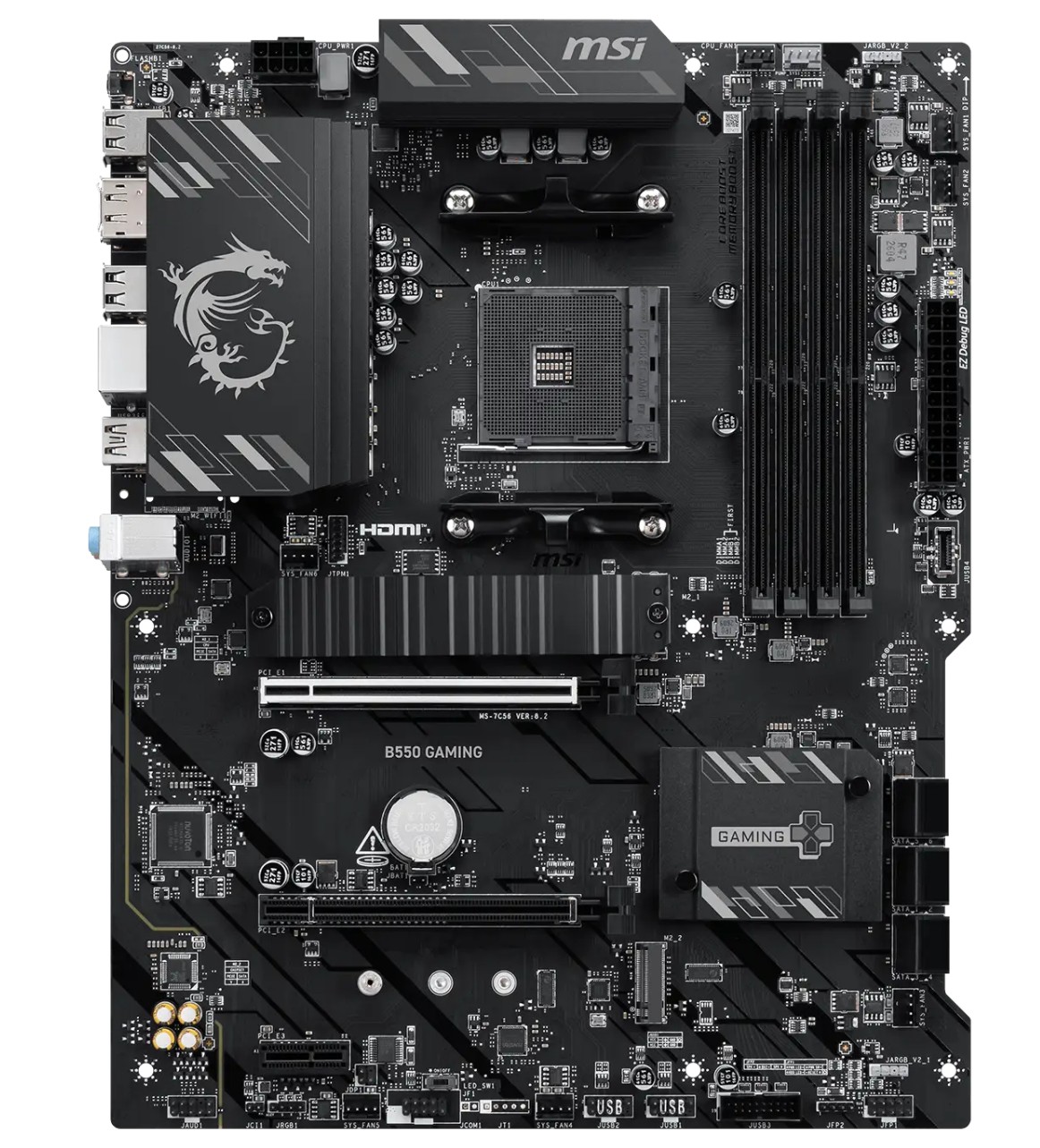

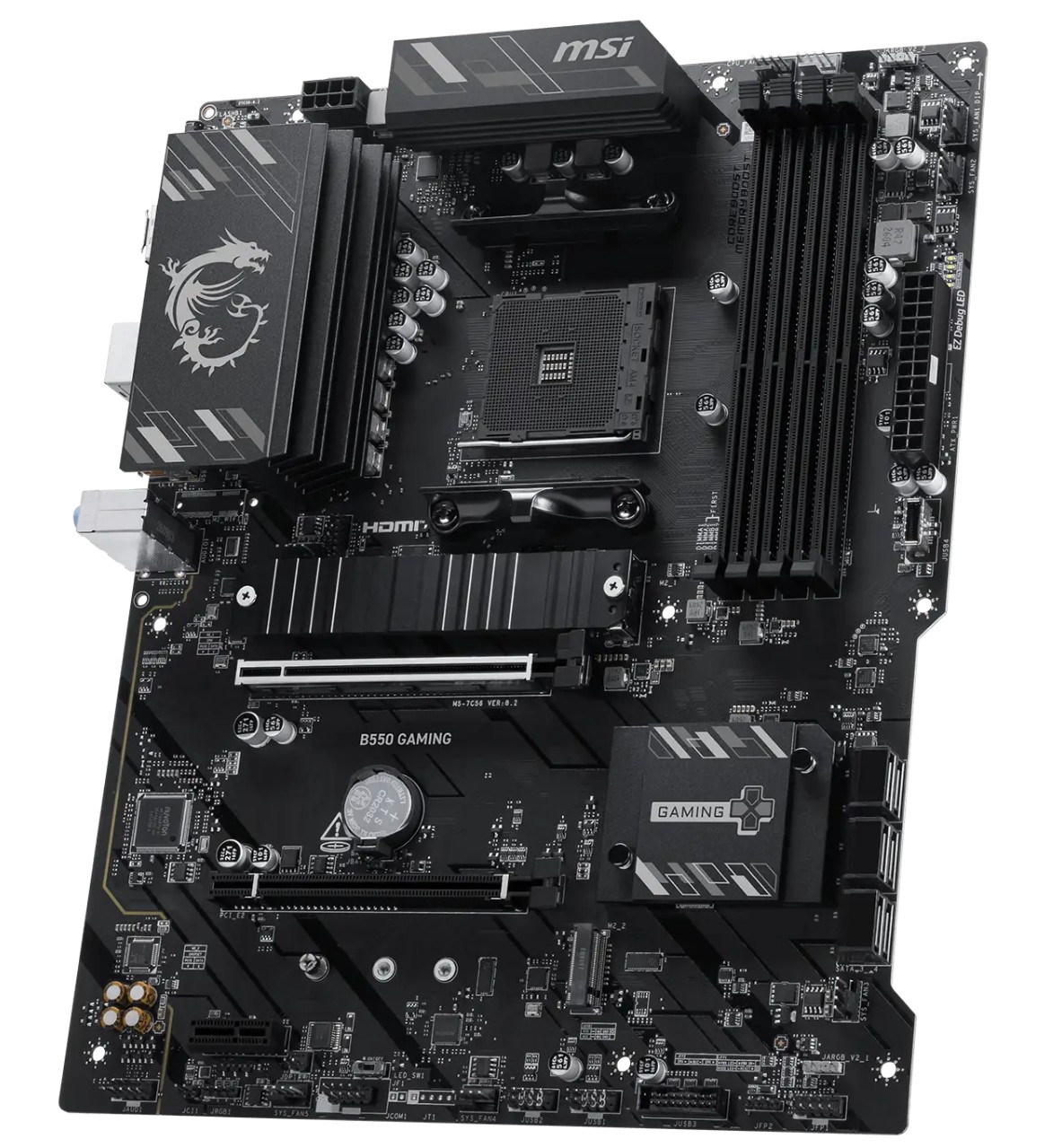

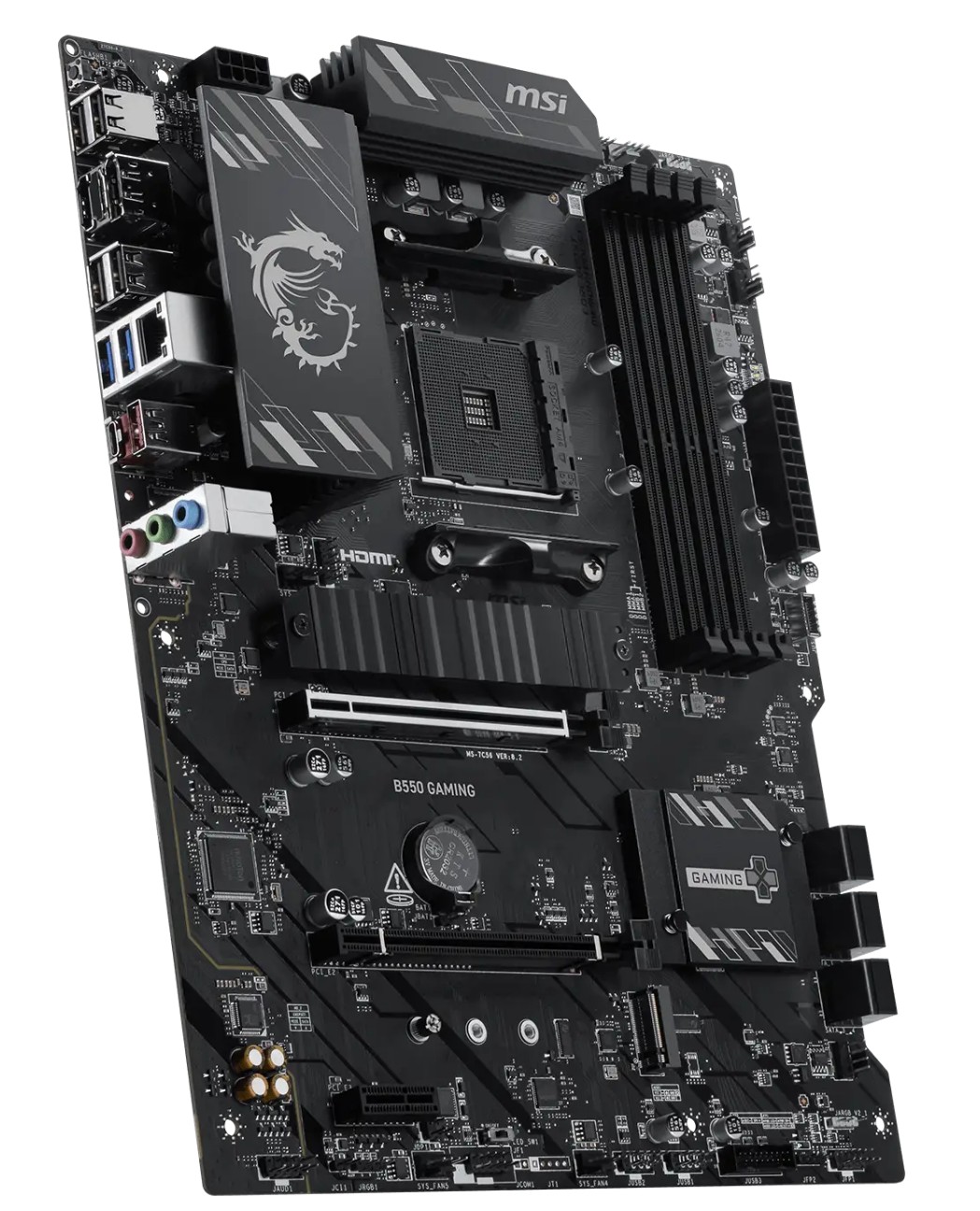

MSI B550 GAMING
Chipset: AMD B550
Rozměrový formát: ATX 243.84mmx304.8mm
Podpora pro procesory: AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Patice procesoru: AM4
Paměť:
- 4x DDR4, Maximum Memory Capacity 128GB
- Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 4800+ MHz
- 1DPC 2R Max speed up to 3866+ MHz
- 2DPC 1R Max speed up to 4000+ MHz
- 2DPC 2R Max speed up to 3600+ MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
Grafické porty:
1x HDMI
- Support HDMI™ 1.4, maximum resolution of 4K 30Hz
1x DisplayPort
- Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Zvuková karta:
- Realtek ALC897
- 7.1-Channel High Definition Audio
Ethernet: Realtek 8111H 1G LAN
Rozšiřující sloty:
- 2x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
- PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Úložný prostor:
2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
6x SATA 6G
USB:
Zadní USB
- 4x USB 2.0
- 2x USB 5Gbps Type A
- 1x USB 10Gbps Type A
- 1x USB 10Gbps Type C
Přední USB
- 4x USB 2.0
- 2x USB 5Gbps Type A
- 1x USB 5Gbps Type C
Interní porty:
Napájení
- 1× Power Connector (ATX_PWR)
- 1× Power Connector (CPU_PWR)
- 1× CPU Fan
- 1× Combo Fan (Pump_Sys Fan)
- 6× System Fan
USB
- 4× USB 2.0 ports
- 2× USB 5Gbps Type-A ports
- 1× USB 5Gbps Type-C port
Ostatní
- 2× Front Panel (JFP)
- 1× Chassis Intrusion (JCI)
- 1× Front Audio (JAUD)
- 1× COM Port (JCOM)
- 2× Addressable V2 RGB LED connectors (JARGB_V2)
- 1× RGB LED connector (JRGB)
- 1× TPM pin header (TPM 2.0)

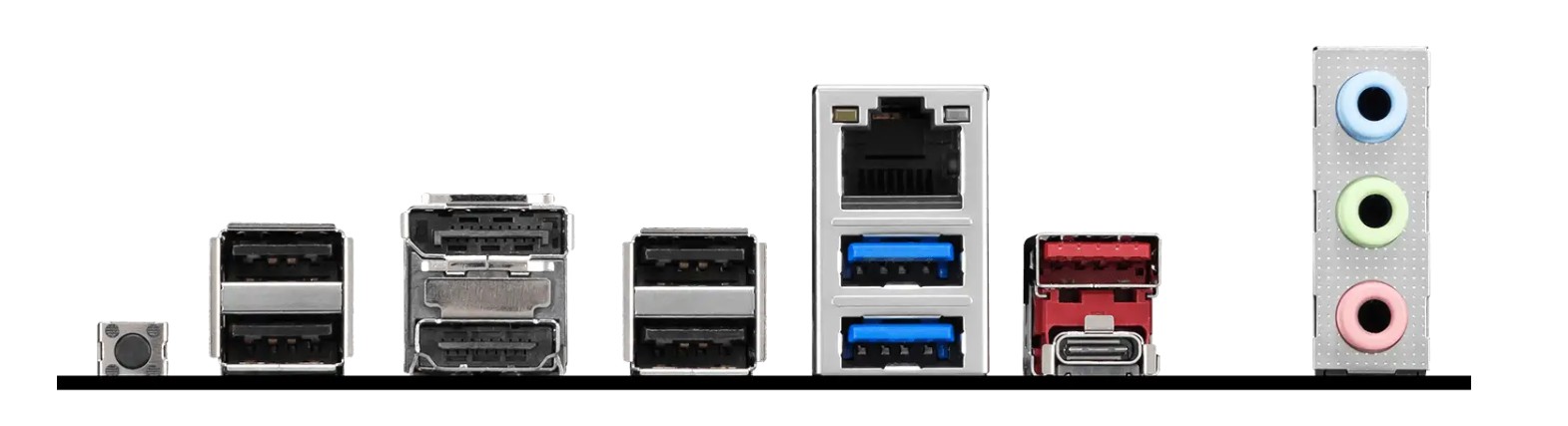

Porty na zadním panelu:
- USB 2.0
- DisplayPort 1.2
- 1G LAN
- USB 10Gbps (Type-A)
- Audio Connectors
- Flash BIOS Button
- HDMI™
- USB 2.0
- USB 5Gbps (Type-A)
- USB 10Gbps (Type-C)
OS: Windows 11 64-bit
