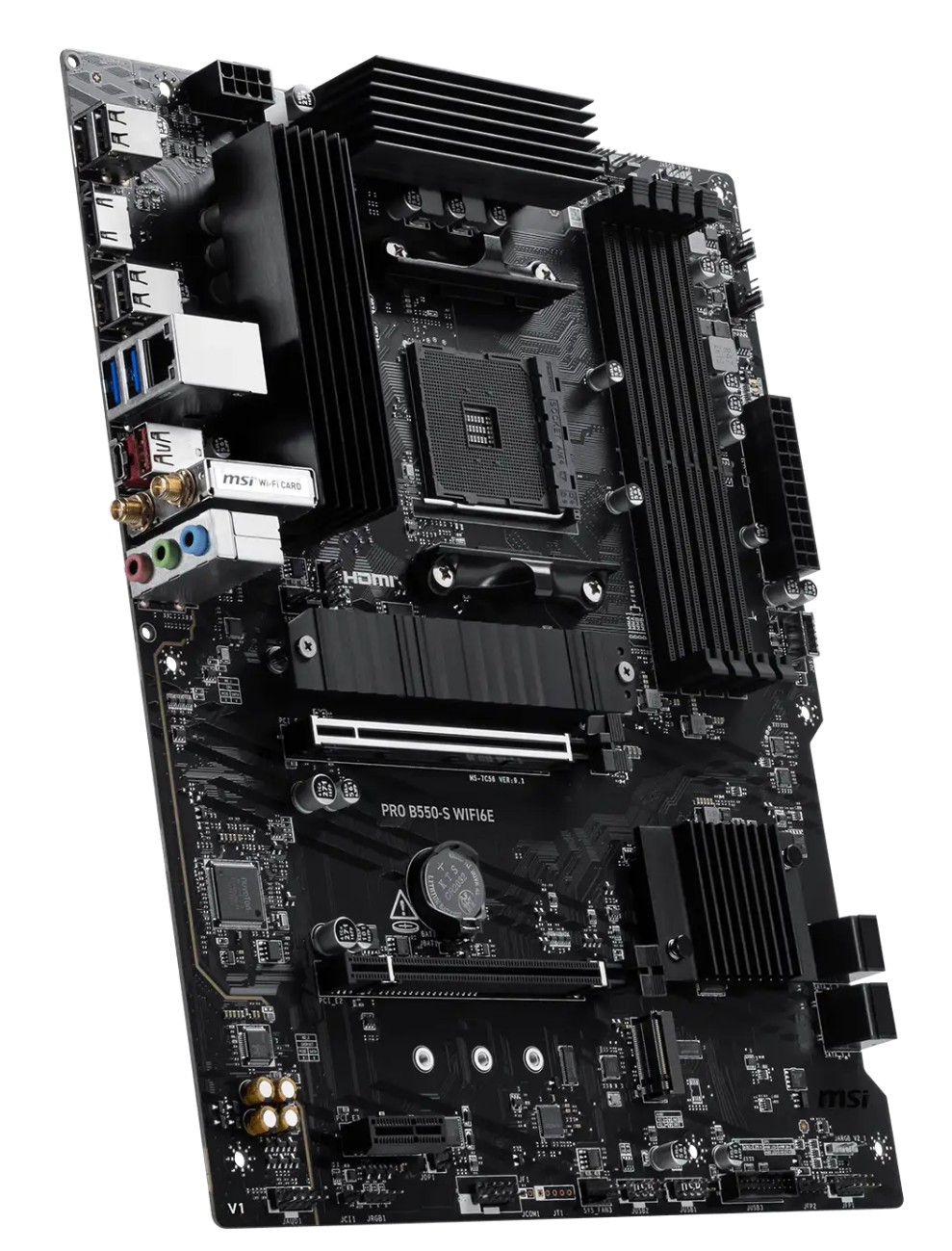

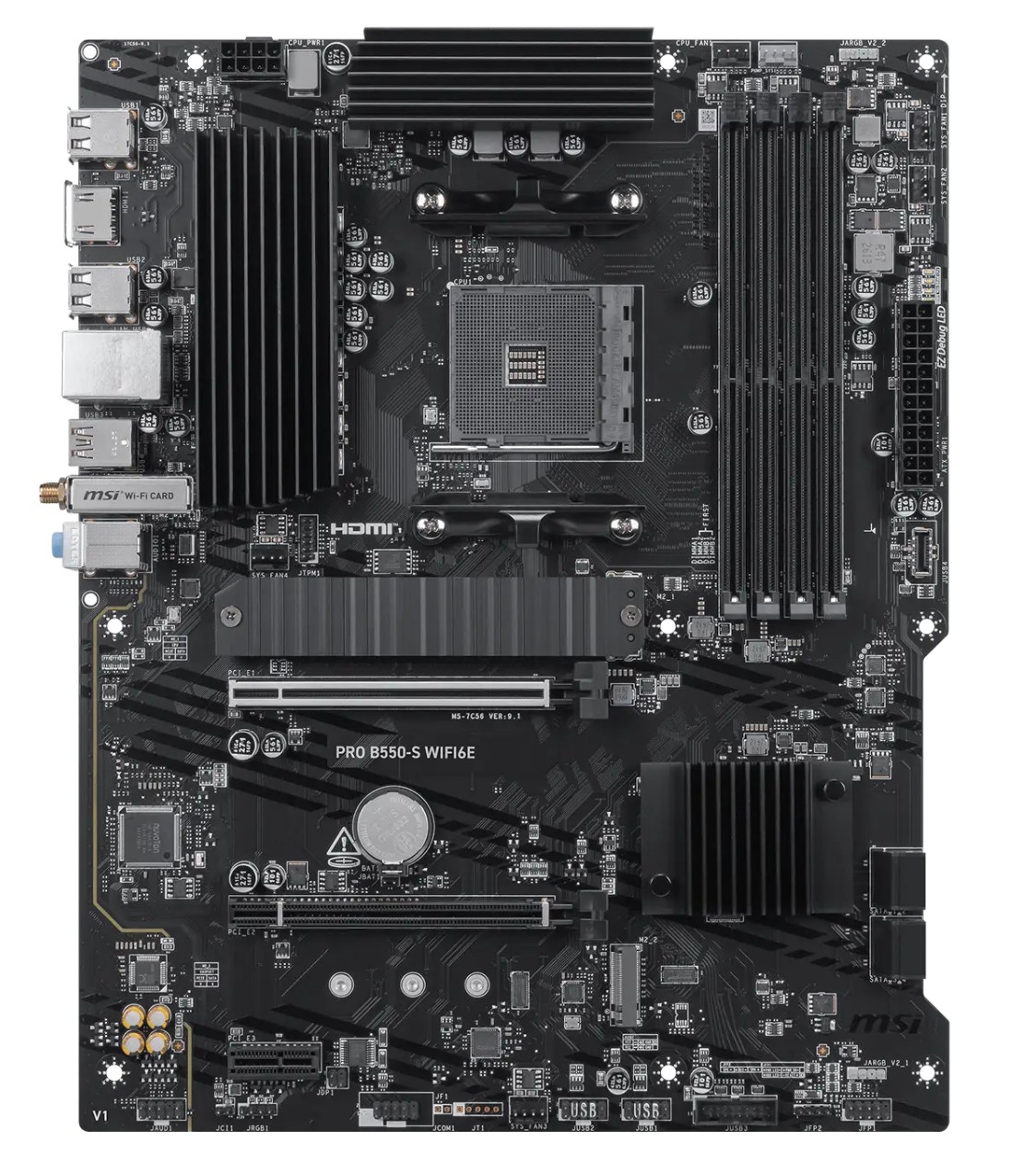

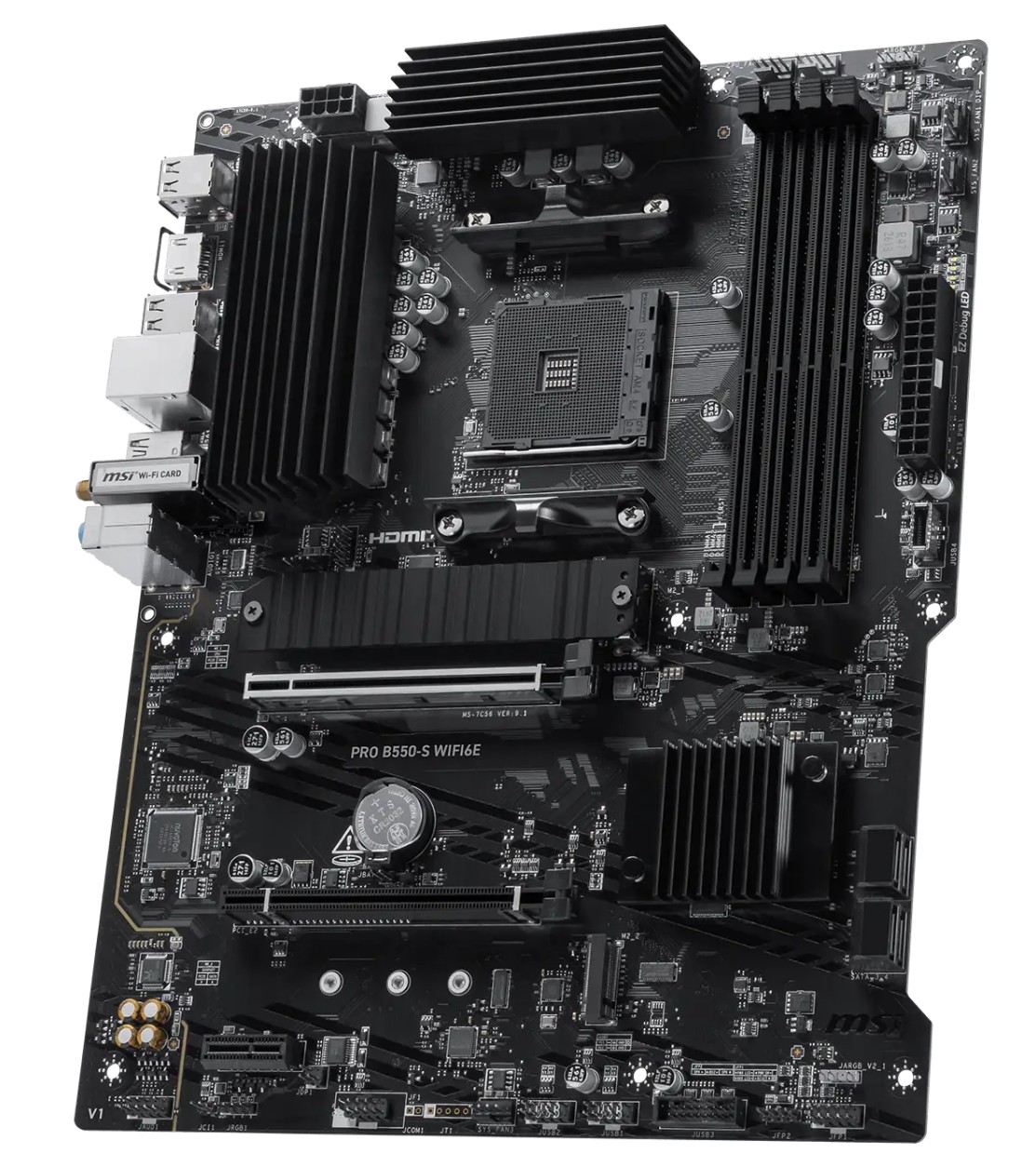

MSI PRO B550-S WIFI6E
Chipset: AMD B550
Rozměrový formát: ATX 243.84mmx304.8mm
Podpora pro procesory: AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors
Patice procesoru: AM4
Paměť:
- 4x DDR4, Maximum Memory Capacity 128GB
- Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
- Max. overclocking:
- 1DPC 1R Max speed up to 4800+ MT/s
- 1DPC 2R Max speed up to 3866+ MT/s
- 2DPC 1R Max speed up to 4000+ MT/s
- 2DPC 2R Max speed up to 3600+ MT/s
- Supports JEDEC Speed
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Memory Overclocking by A-XMP OC mode
Grafické porty:
1x HDMI
- Support HDMITM 1.4, maximum resolution of 4K 30Hz
Zvuková karta:
- Realtek ALC897 Codec
- 7.1-Channel High Definition Audio
Ethernet: Realtek® RTL8111H 1Gbps LAN
WLAN + Bluetooth: Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Dual-band 1T1R mode
- Supports MU-MIMO RX
- Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3
Rozšiřující sloty:
2x PCI-E x16 slot
1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
- PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
RAID řadič: RAID 0, RAID 1, RAID 10
Úložný prostor:
2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
USB:
Zadní USB
- 4x USB 2.0
- 2x USB 5Gbps Type A
- 1x USB 10Gbps Type A
- 1x USB 10Gbps Type C
Přední USB
- 4x USB 2.0
- 2x USB 5Gbps Type A
- 1x USB 5Gbps Type C
Interní porty:
Napájení
- 1× Power Connector (ATX_PWR)
- 1× Power Connector (CPU_PWR)
- 1× CPU Fan
- 1× Combo Fan (Pump_Sys Fan)
- 4× System Fan
USB
- 4× USB 2.0 ports
- 2× USB 5Gbps Type-A ports
- 1× USB 5Gbps Type-C port
Ostatní
- 2× Front Panel (JFP)
- 1× Chassis Intrusion (JCI)
- 1× Front Audio (JAUD)
- 1× COM Port (JCOM)
- 2× Addressable V2 RGB LED connectors (JARGB_V2)
- 1× RGB LED connector (JRGB)
- 1× TPM pin header (TPM 2.0)

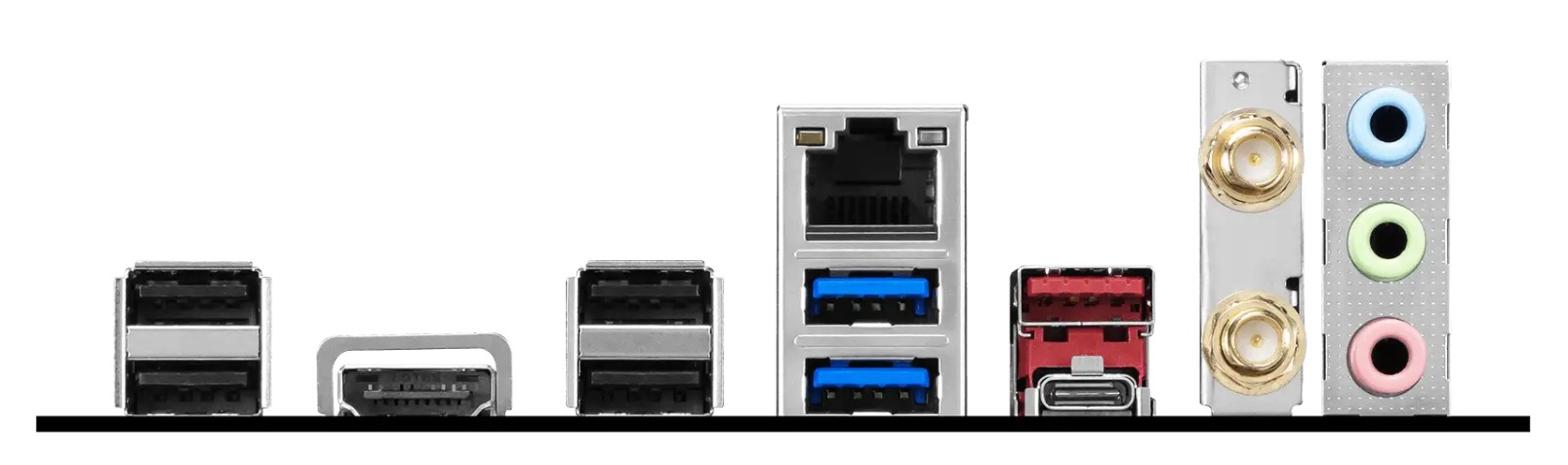

Porty na zadním panelu:
- USB 2.0
- HDMI
- USB 2.0
- LAN Port
- USB 10Gbps Type-A
- Wi-Fi / Bluetooth
- Audio connectors
- USB 5Gbps Type-A
- USB 10Gbps Type-C
OS: Windows 11 64-bit, Windows 10 64-bit
