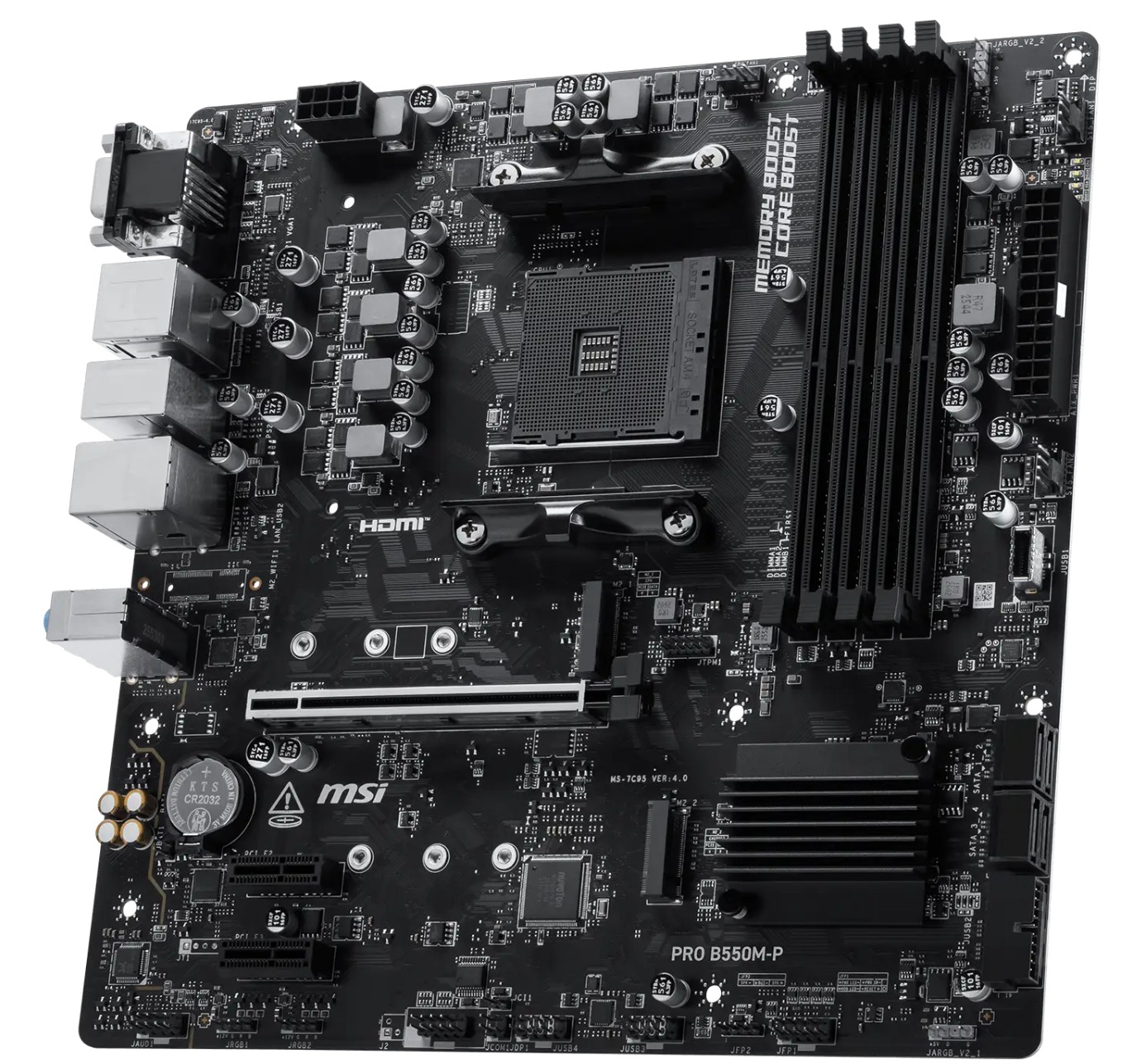

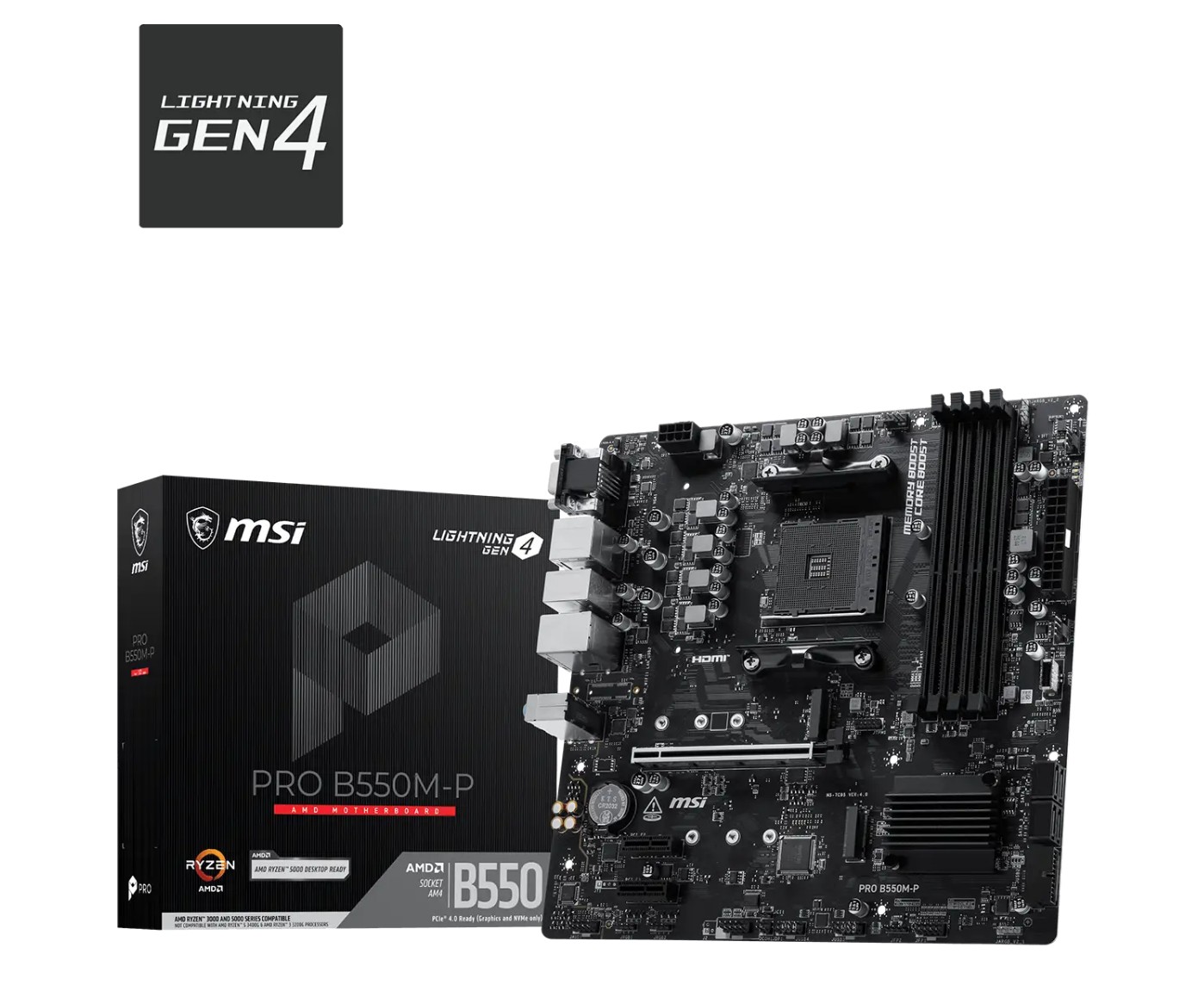

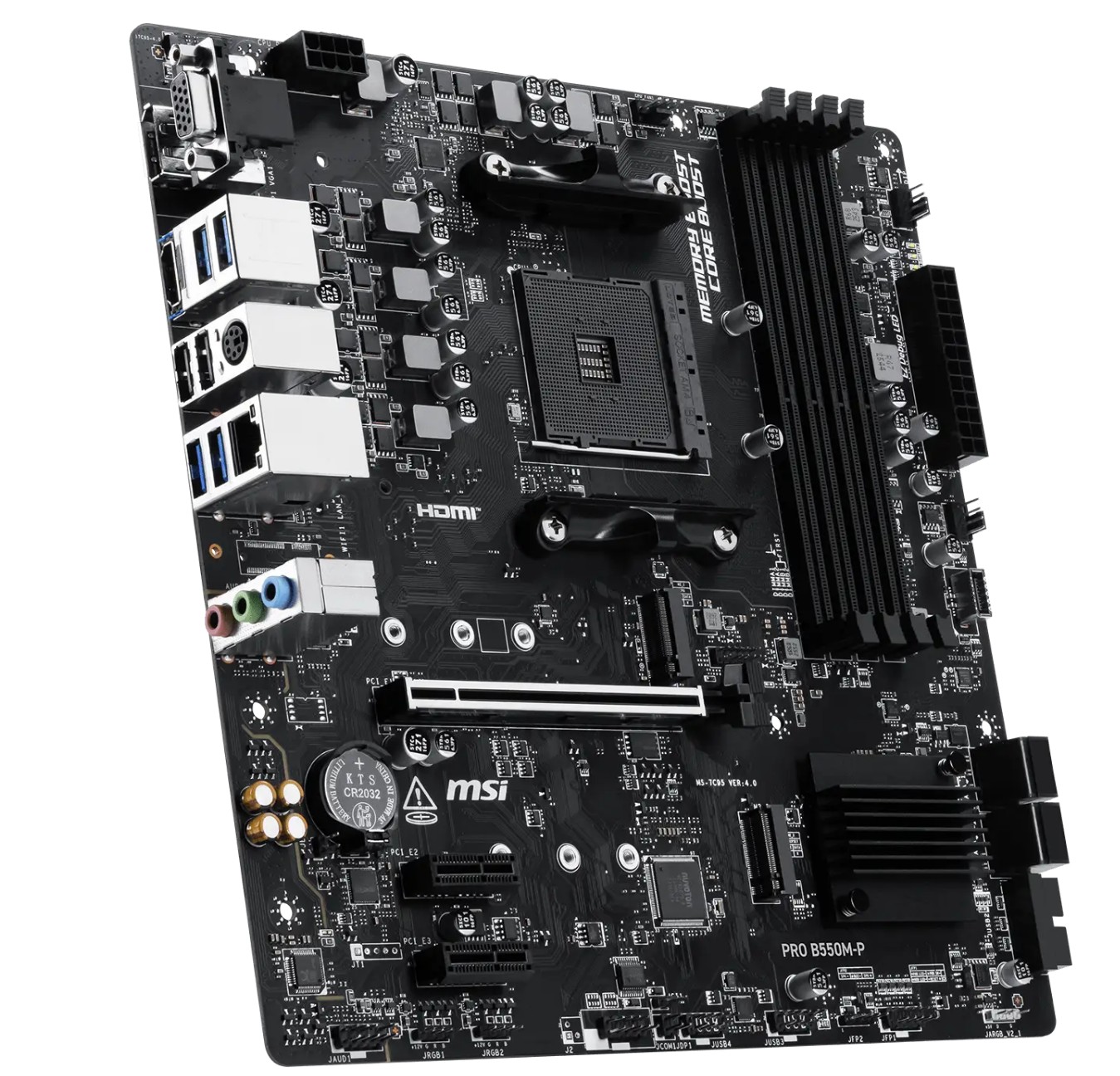

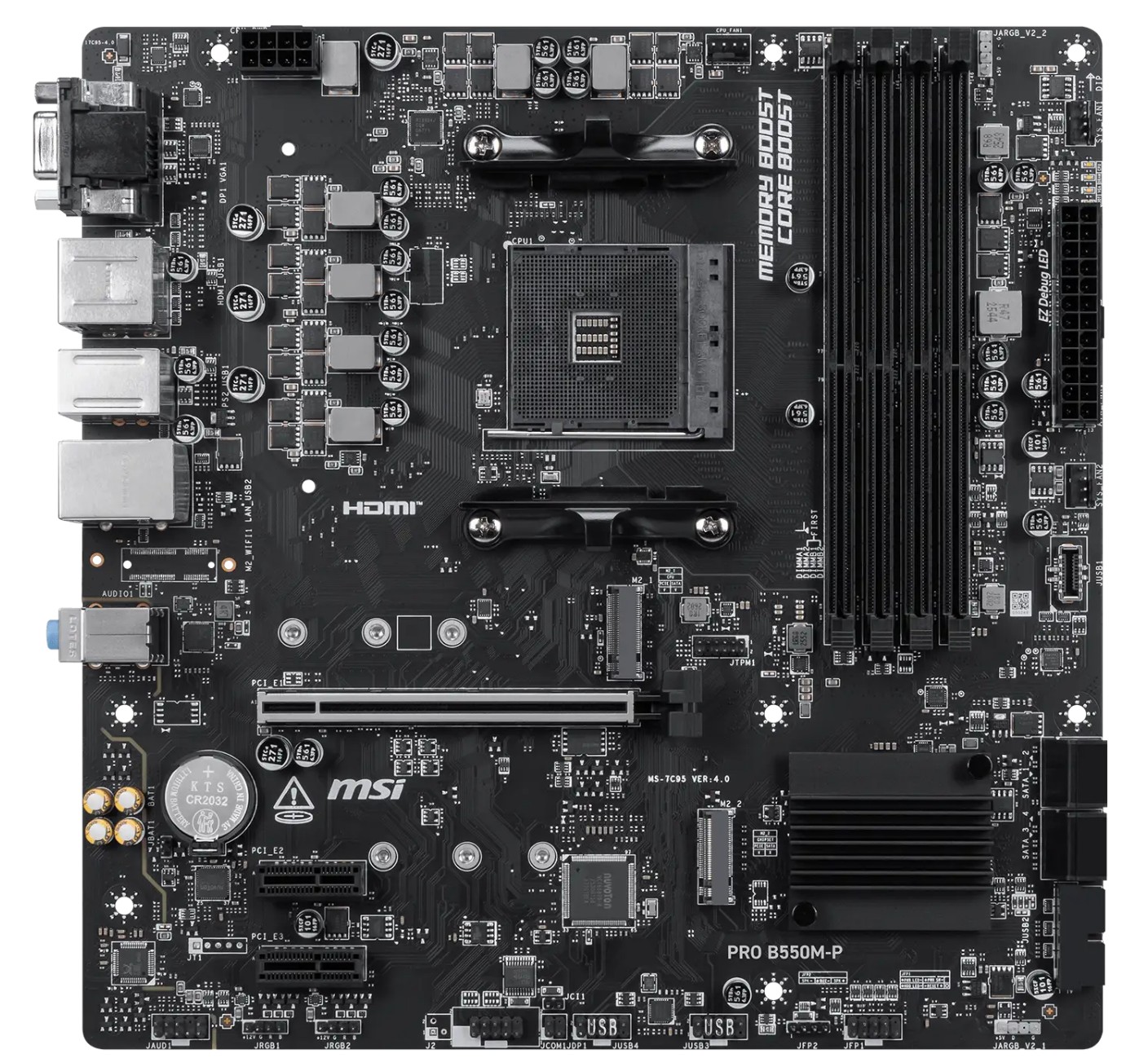

MSI PRO B550M-P
Chipset: AMD B550
Rozměrový formát: mATX 243.84mmx243.84mm
Podpora pro procesory: AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Patice procesoru: AM4
Paměť:
- 4x DDR4, Maximum Memory Capacity 128GB
- Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
- Max. overclocking:
- 1DPC 1R Max speed up to 4400+ MT/s
- 1DPC 2R Max speed up to 3733+ MT/s
- 2DPC 1R Max speed up to 3866+ MT/s
- 2DPC 2R Max speed up to 3466+ MT/s
- Supports JEDEC Speed
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Memory Overclocking by A-XMP OC mode
Grafické porty:
1x HDMI
- Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
- Supports DP 1.4, maximum resolution of 4K 60Hz
1x VGA
- Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
Zvuková karta:
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Ethernet: Realtek® RTL8111H 1Gbps LAN
Rozšiřující sloty:
1x PCI-E x16 slot
2x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
RAID řadič: RAID 0, RAID 1, RAID 10
Úložný prostor:
2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
USB:
Zadní USB
- 2x USB 2.0
- 4x USB 5Gbps Type A
Přední USB
- 4x USB 2.0
- 2x USB 5Gbps Type A (Front)
- 1x USB 5Gbps Type C
Interní porty:
Napájení
- 1× Power Connector (ATX_PWR)
- 1× Power Connector (CPU_PWR)
- 1× CPU Fan
- 2× System Fan
USB
- 4× USB 2.0 ports
- 2× USB 5Gbps Type-A ports
- 1× USB 5Gbps Type-C port
Ostatní
- 2× Front Panel (JFP)
- 1× Chassis Intrusion (JCI)
- 1× Front Audio (JAUD)
- 1× COM Port (JCOM)
- 2× Addressable V2 RGB LED connectors (JARGB_V2)
- 2× RGB LED connectors (JRGB)
- 1× TPM pin header (TPM 2.0)

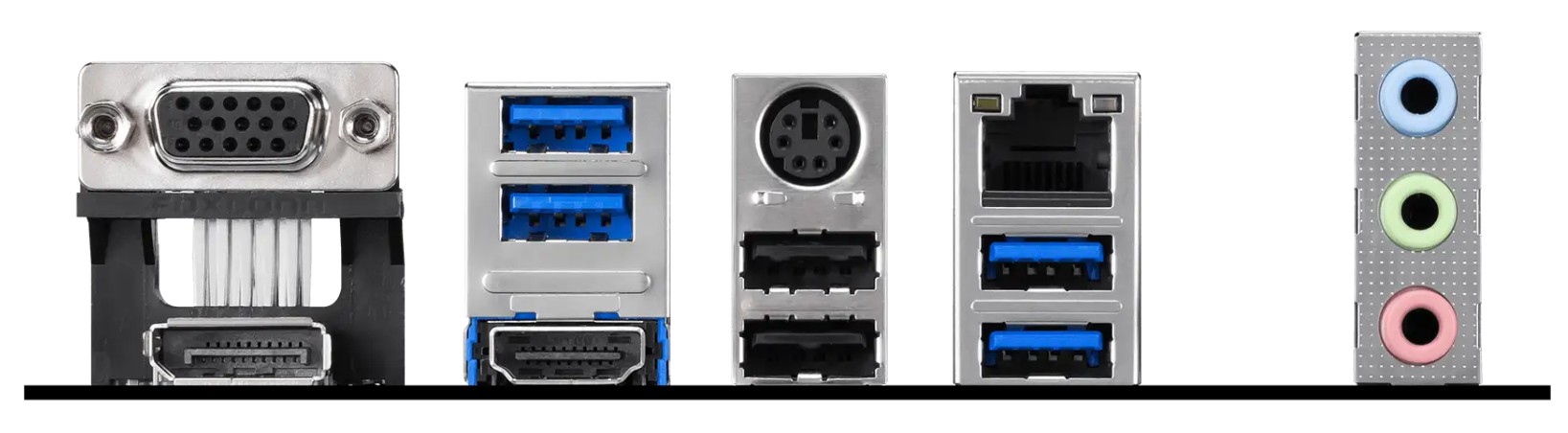

Porty na zadním panelu:
- VGA
- USB 5Gbps Type-A
- Keyboard / Mouse
- LAN Port
- Audio connectors
- DisplayPort
- HDMI™
- USB 2.0
- USB 5Gbps Type-A
OS: Windows 11 64-bit, Windows 10 64-bit
