Chipset: AMD B550
Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:
- 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
- 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
- Dual Channel Memory Architecture
- ECC Memory (ECC mode) support varies by CPU.
Grafické výstupy:
- Integrated Graphics Processor (na základě procesoru)
Multi GPU: AMD 2-Way CrossFireX Technology
Zvuková karta:
- ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
Síťová karta:
- Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard)
Rozšiřující sloty:
- 3x PCIe 3.0 x1
- 1x PCIe 4.0 x16 (x16 mode)
- 1x PCIe 3.0 x16 (x16 mode)
RAID řadič: 0, 1, 10
SATA:
M.2:
- 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
- 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
USB:
- zadní USB porty ( celkem 8 )
- 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
- 4x USB 3.2 Gen 1
- 2x USB 2.0
- přední USB porty ( celkem 6 )
- 2x USB 3.2 Gen 1 port(s)
- 4x USB 2.0 port(s)
Interní porty:
- 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
- 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 1x Thunderbolt header(s)
- 1x CPU Fan connector(s)
- 1x CPU OPT Fan connector(s)
- 3x Chassis Fan connector(s)
- 1x AIO_PUMP connector
- 1x AAFP connector
- 2x Aura RGB Strip Header(s)
- 1x Addressable Gen 2 header(s)
- 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 6x SATA 6Gb/s connector(s)
- 1x 24-pin EATX Power connector(s)
- 1x 8-pin ATX 12V Power connector(s)
- 1x 4-pin ATX 12V Power connector(s)
- 1x System panel(s)
- 1x Thermal sensor connector(s)
- 1x Clear CMOS jumper(s)

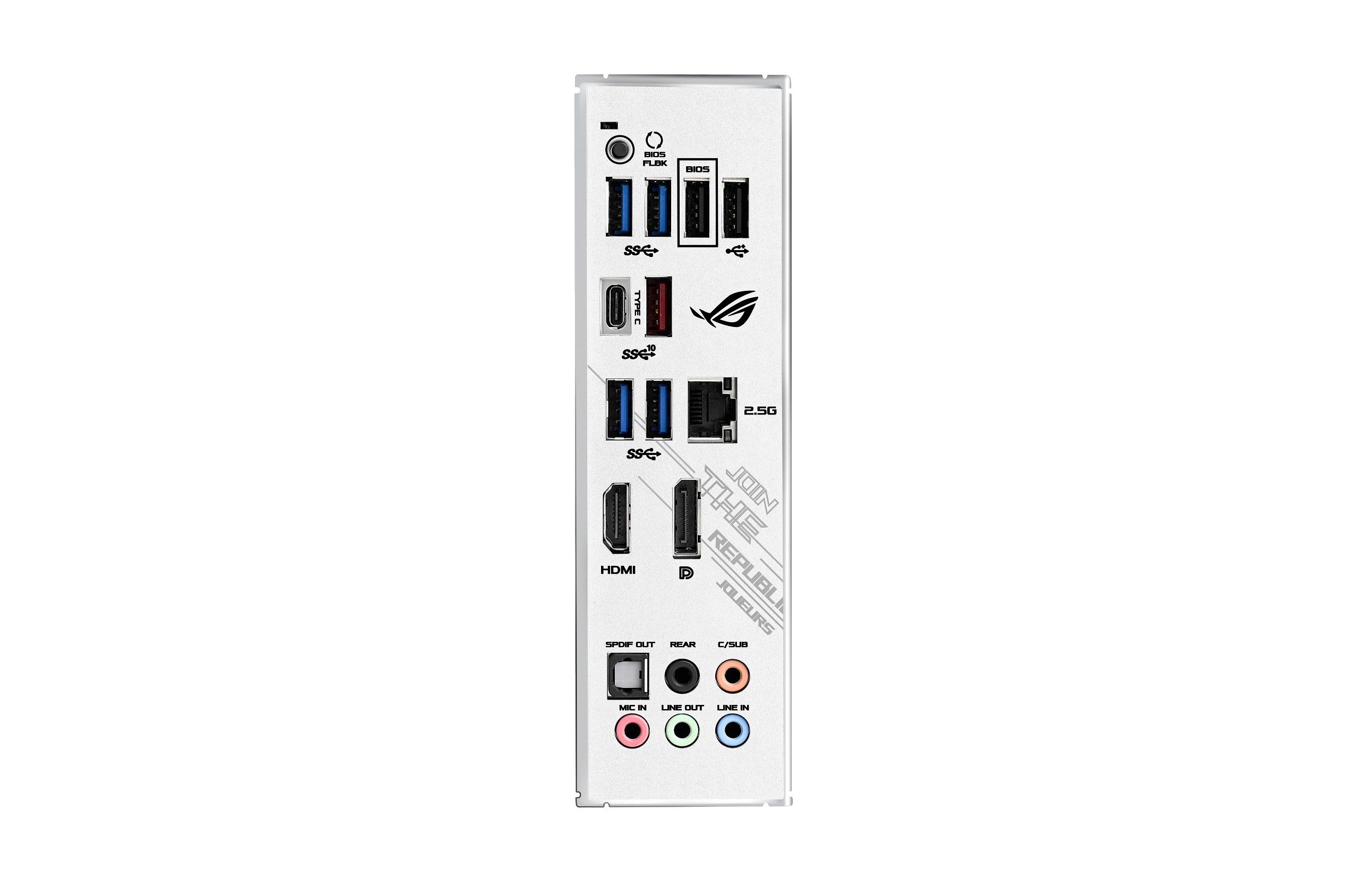

Externí porty:
- 1x BIOS FlashBack™ Button(s)
- 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
- 1x Intel® I225-V 2.5Gb Ethernet
- 4x USB 3.2 Gen 1
- 1x DisplayPort
- 1x HDMI
- 2x USB 2.0
- 1x Optical S/PDIF out
- 5x Gold-plated audio jacks
Obsah balení:
- 1 x M.2 SSD screw package(s)
- 1x M.2 Rubber Package(s)
- User´s manual
- 4x SATA 6Gb/s cable(s)
- 1x Supporting DVD
- 1x ROG Strix stickers
- 1x Cable ties pack(s)
- 1x Extension cable for Addressable LED
- 1x ROG Thank you card
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Stránka výrobce: https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-a-gaming-model/
https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/
https://www.asus.com/support/FAQ/1046215
