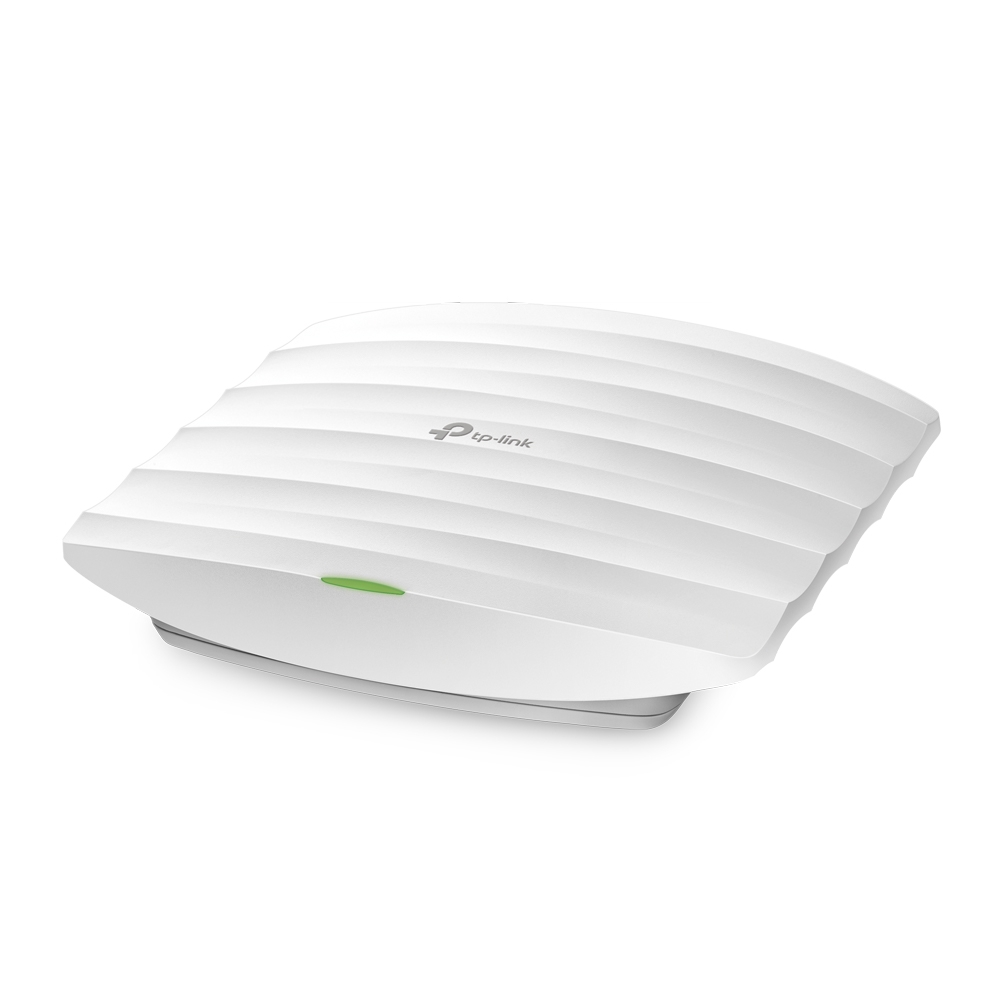

300Mbps Wireless N Ceiling Mount Access Point: EAP115

300Mbps Wireless N Ceiling Mount Access Point, Qualcomm, 300Mbps at 2.4GHz, 802.11b/g/n, 1 10/100Mbps LAN, 802.3af PoE Supported, Centralized Management, Load Balance, Rate Limit, Captive Portal, Cluster Mode, 2 Internal Antennas, Ceiling/Wall Mount

Krátké představení Omada SDN: https://www.youtube.com/watch?v=Veb8-o8EE6U

PŘEHLED

• Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
• The user-friendly Cluster Mode allows manage up to 24 (EAP115) without requiring any extra hardware or software
• Supports Power over Ethernet (802.3af) for convenient and affordable installation
• Simple mounting design for easy attachment to a wall or ceiling
• Captive portal provides one convenient method of authentication for Wi-Fi guests
• Enterprise class Wi-Fi security help to decrease network security threats
• Multi-SSID divides multiple wireless networks for different user types

TECHNICKÁ SPECIFIKACE

Interface

• Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)

Button

• Reset

Power Supply

• PoE or external 12VDC/1.0A power supply

Power Consumption

• 5W

Wireless Standards

• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H )

• 180*180*47.5mm

Antenna Type

• Internal 2* 3dBi Omni

Mounting

• Ceiling /Wall Mounting (Kits included)

Physical Security Lock

• Kensington Lock Slot

Watch Dog

• Yes

WIRELESS FEATURES
Wireless Standards

• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

• 2.4-2.4835GHz

Signal Rate

• 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)

Reception Sensitivity

• 300M: -71dBm@10% PER
• 150M: -75dBm@10% PER
• 54M: -78dBm@10% PER
• 11M: -93dBm@8% PER
• 6M: -92dBm@10% PER
• 1M: -96dBm@8% PER

Wireless Functions

• Multiple SSIDs (Up to 8 SSIDs)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Transmission Power

• CE:
• <20dBm
• FCC:
• <26dBm
• MANAGEMENT

Auranet Controller Software

• Yes

Cluster Mode

• Yes

Email Alerts

• Yes

LED ON/OFF Control

• Yes

Management MAC Access Control

• Yes

SNMP

• v1,v2c

System Logging Local/Remote Syslog

• Local/Remote Syslog

Telnet

• Yes

Web-based Management

• HTTP/HTTPS

OTHERS
Certification

• CE, FCC, RoHS

Package Contents

• 300Mbps Wireless N Ceiling Mount Access Point EAP115
• Power Adapter
• Mounting Kits,
• Installation Guide

System Requirements

• Microsoft Windows 10/8/7/Vista/XP

Environment

• Operating Temperature: 0&deg;C~40&deg;C
• Storage Temperature: -40&deg;C~70&deg;C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
