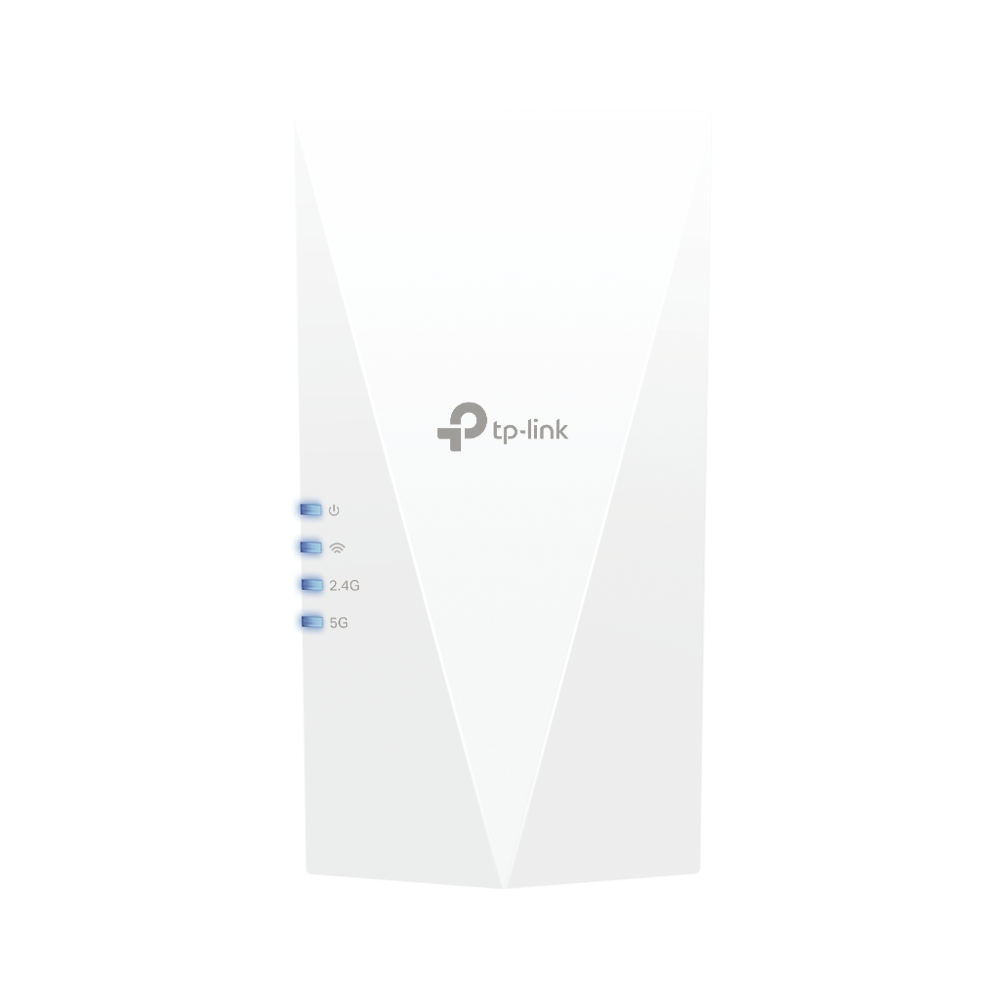

RE500X
HARDWARE
Ports: 1 Gigabit Ethernet Port
Button: WPS Button, Reset Button
Power Consumption: 10W
Dimensions ( W x D x H ): 3.1×1.4×5.9 in. (78×36×149 mm)
Antenna: 2 Internal Antennas
WIRELESS
Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Reception Sensitivity:
5GHz:
- 11a 6Mbps: -93dBm,
- 11a 54Mbps: -75dBm
- 11ac HT20 MCS0: -92dBm,
- 11ac HT20 MCS8: -70dBm
- 11ac HT40 MCS0: -90dBm,
- 11ac HT40 MCS9: -66dBm
- 11ac HT80 MCS0: -87dBm,
- 11ac HT80 MCS9: -62dBm
2.4GHz:
- 11g 54Mbps: -77dBm,
- 11n HT20 MCS7: -75dBm
- 11n HT40 MCS7: -72dBm
Transmit Power: CE: 2.4GHz ?20dBm, 5GHz ?30dBm
Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security: 64/128-bit WEP, WPA/WPA-PSK2 encryptions
Package Contents: Wi-Fi Range Extender RE500X, Quick Installation Guide
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications: FCC, RoHS
