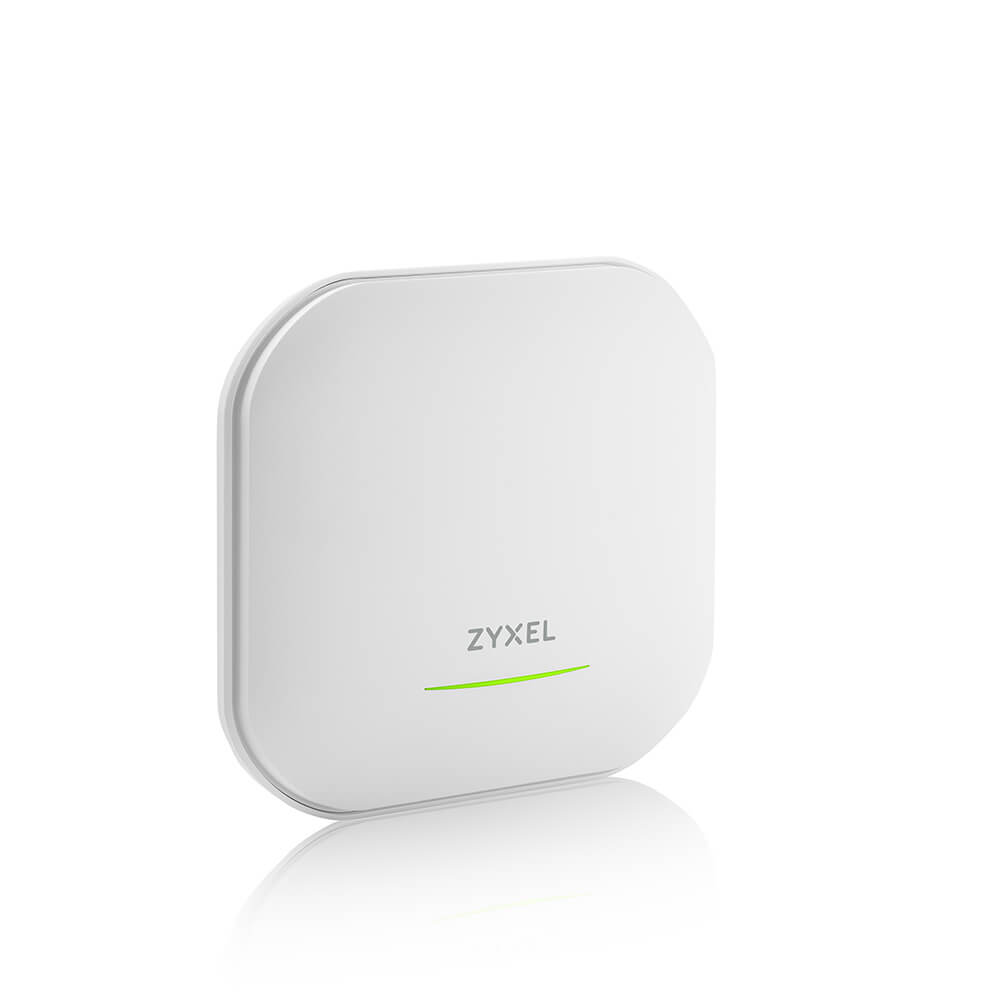

Description: 802.11ax (WiFi 6E) Dual-Radio Unified Pro Access Point
Wireless
Standard: IEEE 802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed :
- 2.4GHz: 575 Mbps
- 5GHz: 4800 Mbps
- 6GHz: 4800 Mbps
Frequency band:
- 2.4 GHz
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
- 5 GHz
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
- 6 GHz
- USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
- European (ETSI): 5.925 to 6.425 GHz
Bandwidth: 20-, 40-,80- and 160-MHz
Conducted typical transmit output power:
- US (2.4GHz/5GHz) or +/6GHz): 24/28/24dBm
- EU (2.4GHz/5GHz) or +/6GHz): 18/25/19dBm
RF Design
Antenna type: 4x4 + 2x2 Dual-optimized Antenna
Antenna gain:
- 2.4 GHz: Peak Gain 3dBi
- 5 GHz: Peak Gain 5dBi
- 6 GHz: Peak Gain 6dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm
WLAN feature
Band Steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing : Yes
Advanced Cellular Coexistence: Yes
Security
- Encryption
- WEP
- WPA
- WPA2-PSK
- WPA3
Authentication:
- WPA
- WPA2
- WPA3-Enterprise
- EAP
- IEEE 802.1X
- RADIUS authentication
Access management:
- L2-isolation
- MAC filtering
- Rogue AP detection
Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes
Management
Operating mode:
- Nebula Cloud managed
- Controller-managed
- Standalone
ZON Utility:
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
Zyxel Wireless Optimizer:
- WiFi AP planning
- WiFi coverage detection
- Wireless health management
Web UI/CLI: Yes
SNMP: Yes
Physical Specifications
Item
Dimensions (WxDxH)(mm/in.): 180 x 180 x 42 mm / 7.09 x 7.09 x 1.65
Weight (g/lb.): 650g/1.43lb
Packing
Dimensions (WxDxH)(mm/in.): 197 x 190 x 60 mm / 7.76 x 7.48 x 2.36
Weight (g/lb.): 780g/1.72lb
Included accessories:
- Mount plate
- Mounting screws
MTBF (hr): 711,333

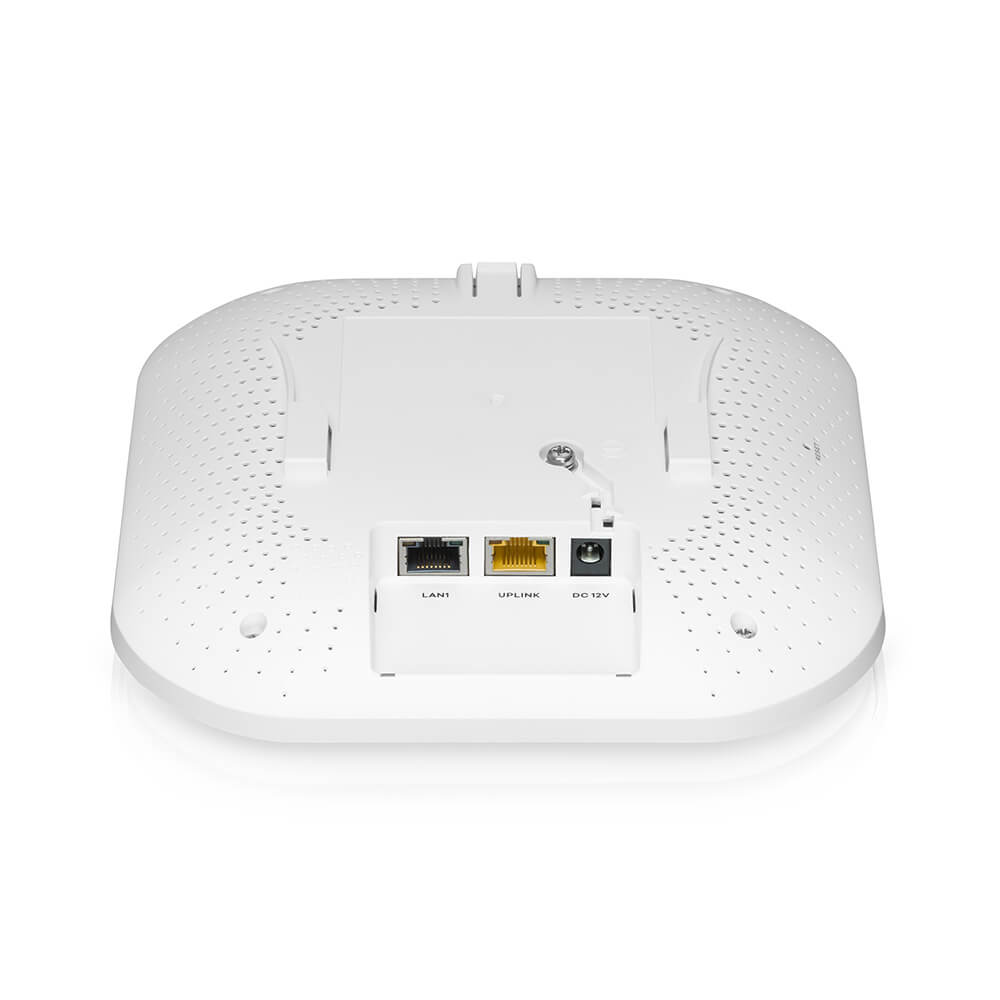

Physical Interfaces
Ethernet port:
- 1 x 1/2.5Gbps LAN
- 1 x 1Gbps LAN
Power:
- PoE (802.3)at: power draw 21 W
- DC input : 12 VDC 2A
PoE Modes:
- IEEE802.3af: No Wireless
- IEEE802.3at: Unrestricted
- IEEE802.3bt: Unrestricted
