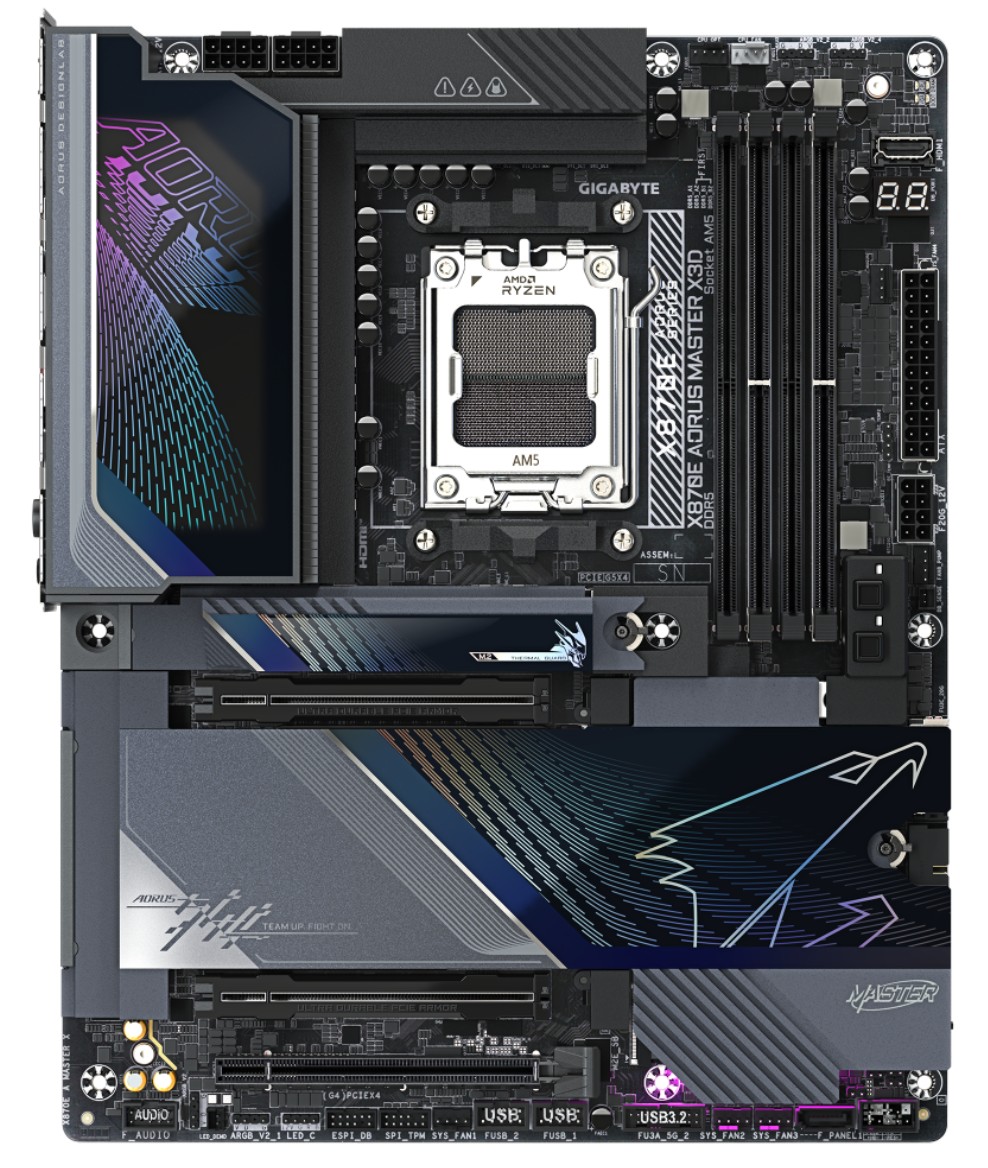

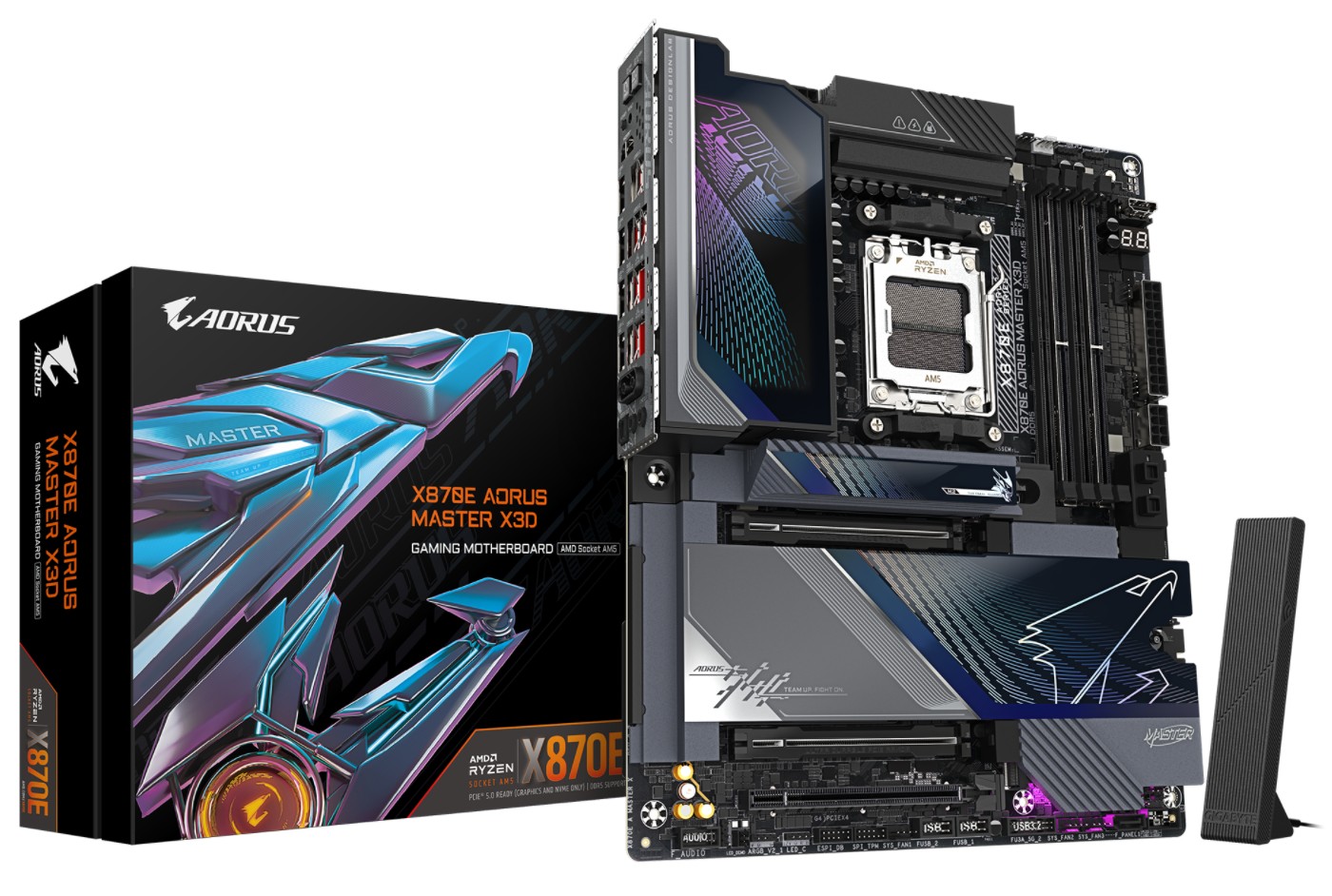

Gigabyte X870E AORUS MASTER X3D

Chipset: AMD X870E
Rozměrový formát: ATX Form Factor; 30.5cm x 24.4cm

Podpora pro procesory:

• AMD Ryzen 9000 Series Processors
• AMD Ryzen 8000 Series Processors
• AMD Ryzen 7000 Series Processors

Patice procesoru: AM5

Paměť:

• Podpora pro DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules
• 4x DDR5 DIMM sloty podporující až 256GB (64GB každý slot) paměti
• Dual channel memory architecture
• Podpora pro non-ECC Un-buffered DIMM moduly
• Podpora pro AMD EXPO a XMP

Grafické porty:

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:

• 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

Integrated Graphics Processor with AMD Radeon™ Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

Zvuková karta:

• Realtek® ALC1220 CODEC
• ESS ES9118 DAC chip
• Support for DTS:X® Ultra
• High Definition Audio
• 2/4/5.1-channel

Ethernet:

• Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
• Realtek® 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2)

WLAN + Bluetooth: MediaTek Wi-Fi 7 MT7927, RZ738

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 320MHz wireless standard

Rozšiřující sloty:

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU

• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný prostor:

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
• 1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
• 2 x SATA 6Gb/s connectors

USB:

CPU+ASMedia USB4® controller:

• 2 x USB4® USB Type-C® ports on the back panel

CPU:

• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

• 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset:

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
• 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
• 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Interní porty:

Napájení

• 1× 24-pin ATX main power connector
• 2× 8-pin ATX 12V power connectors
• 1× PCIe power connector
• 1× CPU fan header
• 1× CPU fan / water cooling pump header
• 4× system fan headers
• 1× system fan extension cable header
• 1× system fan / water cooling pump header

Související s úložištěm

• 5× M.2 Socket 3 connectors
• 2× SATA 6Gb/s connectors

USB

• 1× USB Type-C header, USB 3.2 Gen 2x2
• 2× USB 3.2 Gen 1 headers
• 2× USB 2.0/1.1 headers

Ostatní

• 4× addressable RGB Gen2 LED strip headers
• 1× RGB LED strip header
• 1× front panel header
• 1× front panel audio header
• 1× speaker header
• 1× noise detection header
• 1× Trusted Platform Module header
• 1× HDMI port
• 1× chassis intrusion header
• 1× reset jumper
• 1× Clear CMOS jumper
• 2× temperature sensor headers

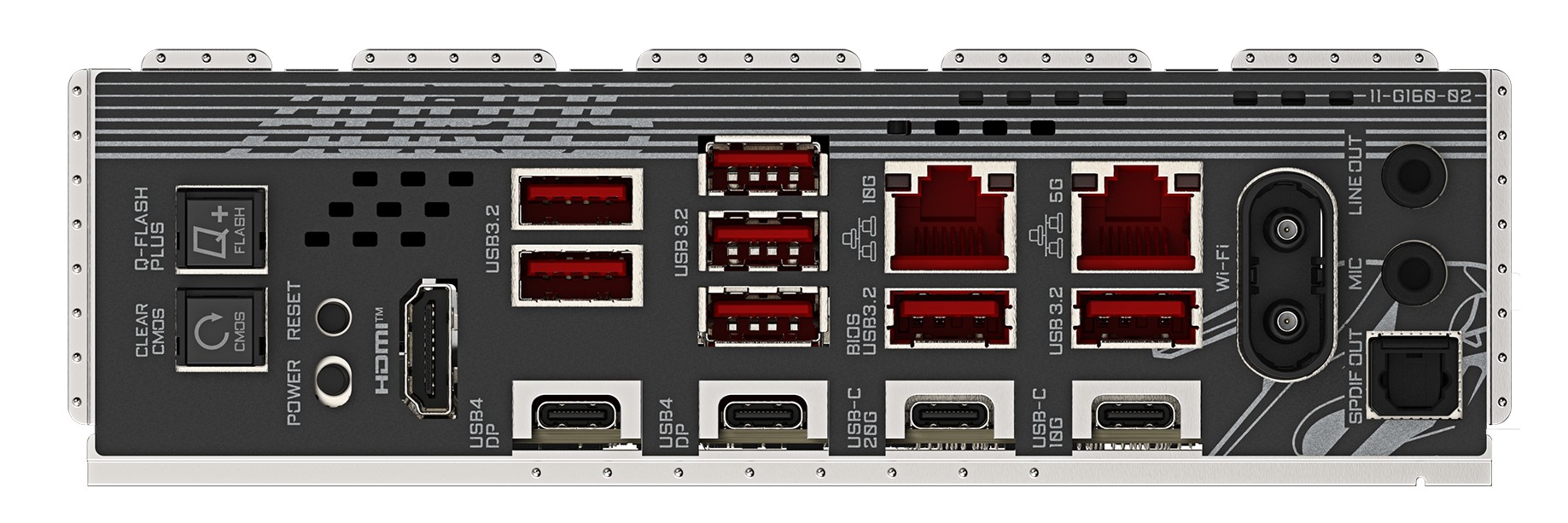

Porty na zadním panelu:

• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 1 x reset button
• 1 x power button
• 1 x HDMI port (Note)
• 2 x USB4® USB Type-C® ports (DisplayPorts (Note))
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
• 7 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x RJ-45 ports

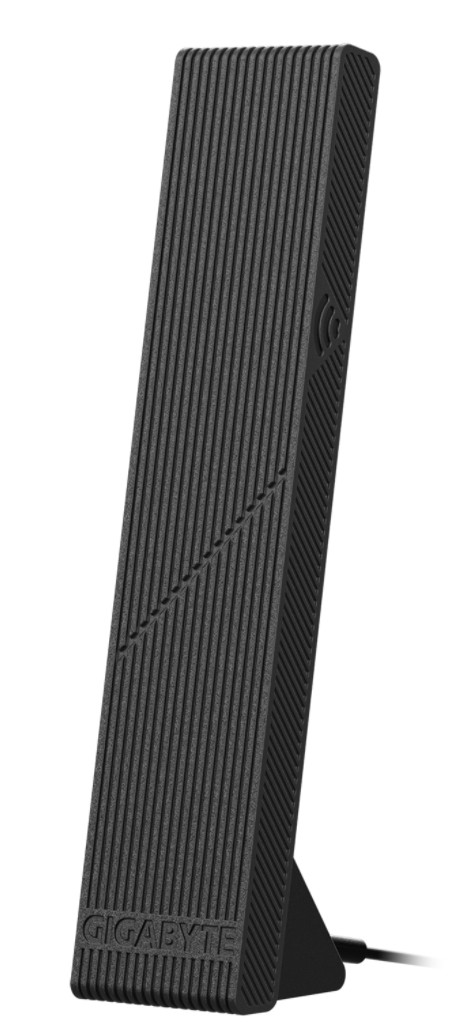

• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

BIOS:

• 1 x 512 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorování:

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

OS: Podpora pro Windows 11 64-bit
