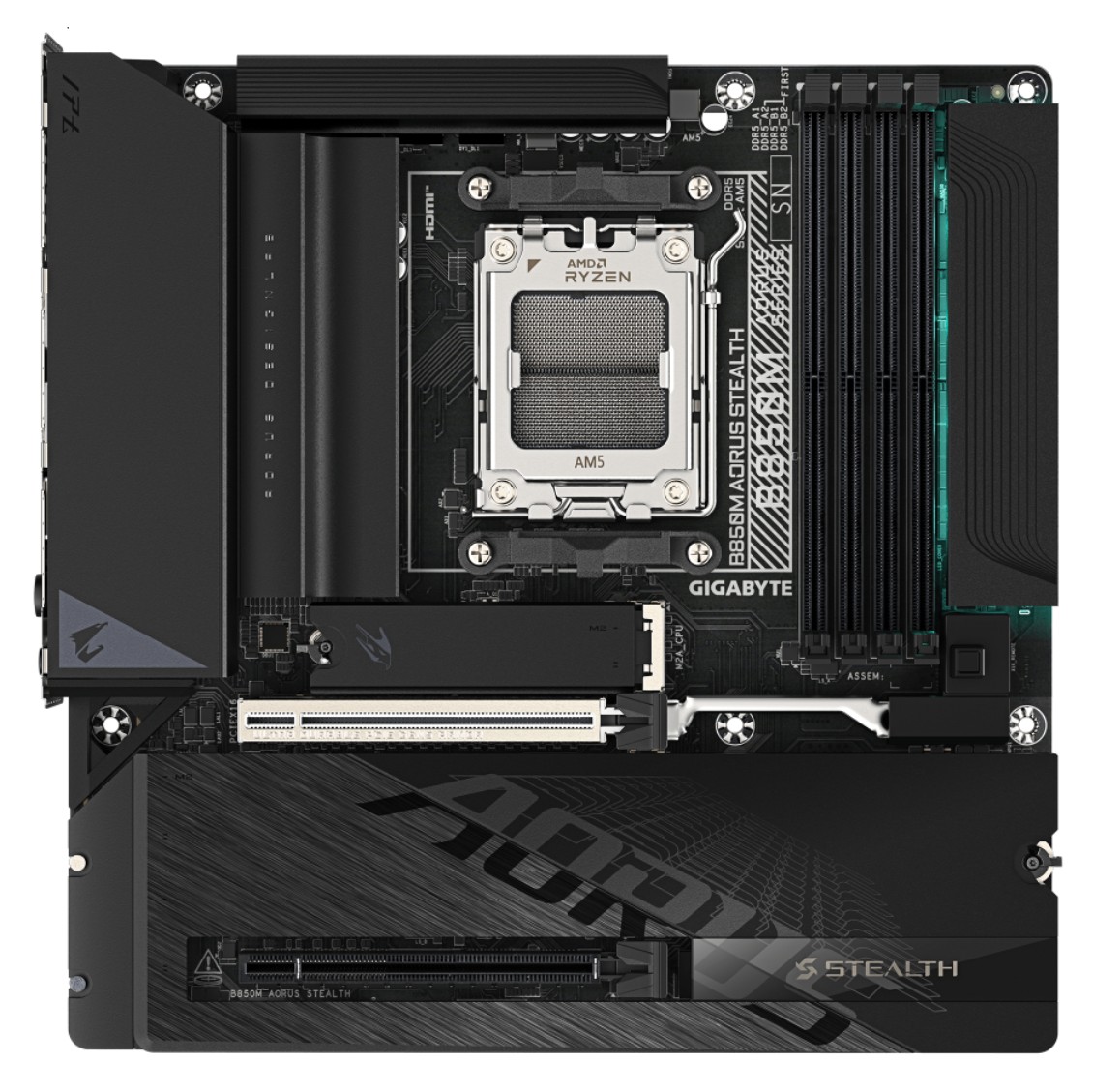

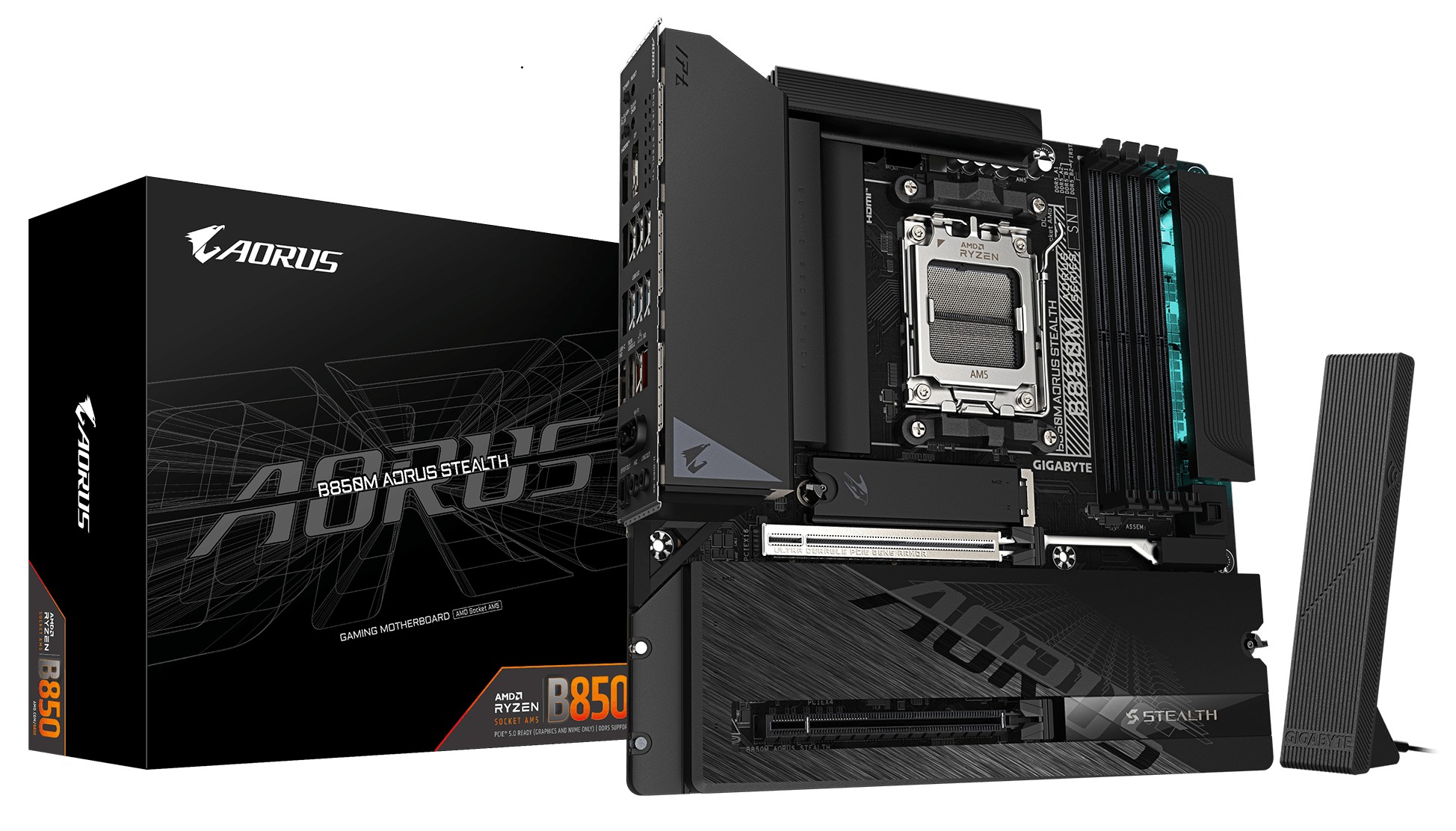

Gigabyte B850 AORUS STEALTH
Chipset: AMD B850
Rozměrový formát: Micro ATX Form Factor; 24.4cm x 24.4cm
Podpora pro procesory:
- AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
- AMD Ryzen™ 7000 Series Processors
Patice procesoru: AM5
Paměť:
- Podpora pro DDR5 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s paměťové moduly.
- 4x DDR5 DIMM sloty podporující až 256GB (64GB každý slot) paměti
- Dual channel memory architecture
- Podpora pro non-ECC Un-ubffered DIMM 1Rx8/2Rx8/1Rx16 moduly
- Podpora pro AMD EXPO a XMP
Grafické porty:
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Zvuková karta:
- Realtek® ALC1220 CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
Ethernet: Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
WLAN + Bluetooth: Realtek® Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Rozšiřující sloty:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10
Úložný prostor:
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
USB:
CPU:
- 3 x USB 3.2 Gen 1 ports on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 2 x USB Type-C® ports with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
- 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers

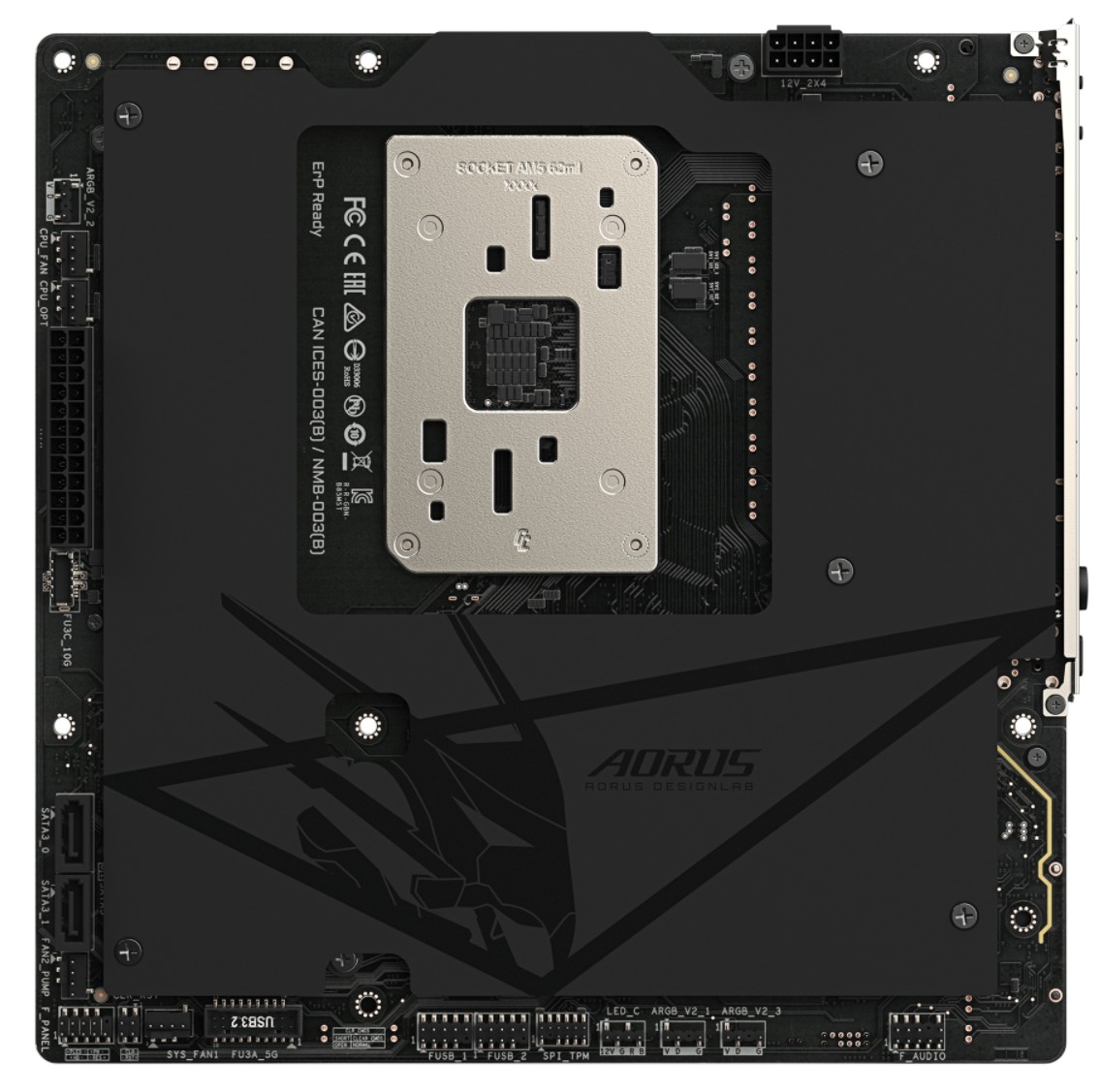

Interní porty:
Napájení
- 1× 24-pin ATX main power connector
- 1× 8-pin ATX 12V power connector
- 1× CPU fan header
- 1× CPU fan / water cooling pump header
- 1× system fan header
- 1× system fan / water cooling pump header
Související s úložištěm
- 3× M.2 Socket 3 connectors
- 2× SATA 6Gb/s connectors
USB
- 1× USB Type-C header, USB 3.2 Gen 2
- 1× USB 3.2 Gen 1 header
- 2× USB 2.0/1.1 headers
Ostatní
- 3× addressable RGB Gen2 LED strip headers
- 1× RGB LED strip header
- 1× front panel header
- 1× front panel audio header
- 1× Trusted Platform Module header
- 1× Clear CMOS jumper
- 1× reset jumper

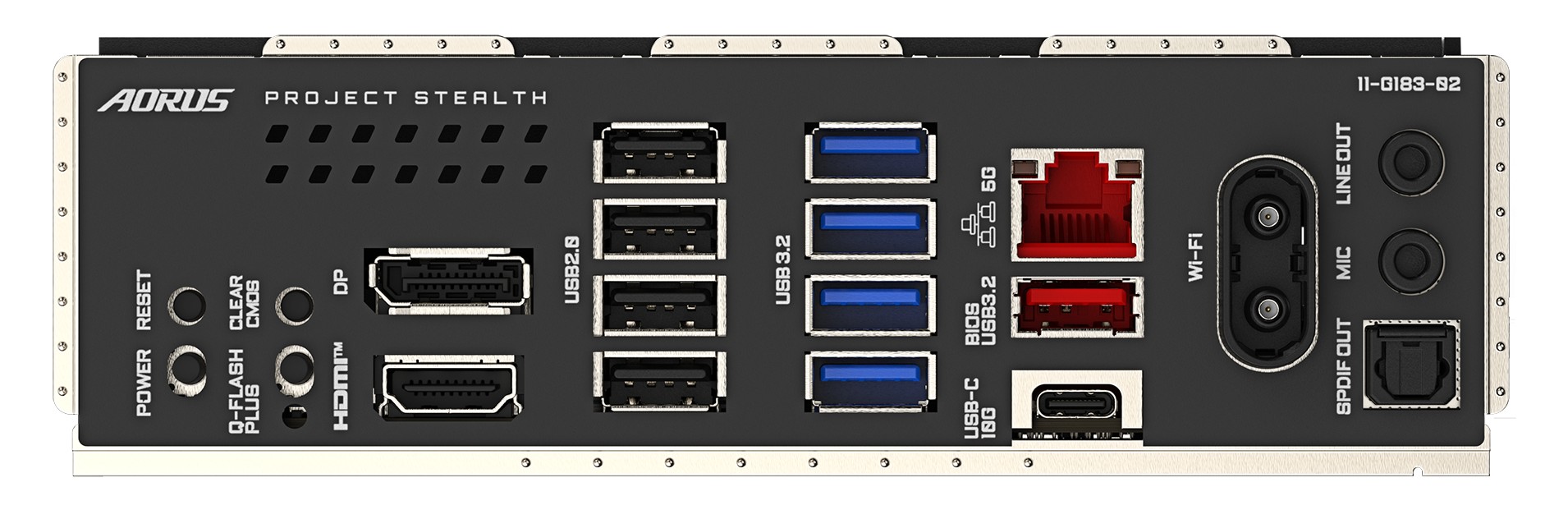

Porty na zadním panelu:
- 1 x Q-Flash Plus button
- 1 x Clear CMOS button
- 1 x power button
- 1 x reset button
- 1 x HDMI port (Note)
- 1 x DisplayPort (Note)
- 2 x antenna connectors (2T2R)
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
BIOS: RAID 0, RAID 1, RAID 5, RAID 10
H/W Monitorování
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
OS: Podpora pro Windows 11 64-bit
