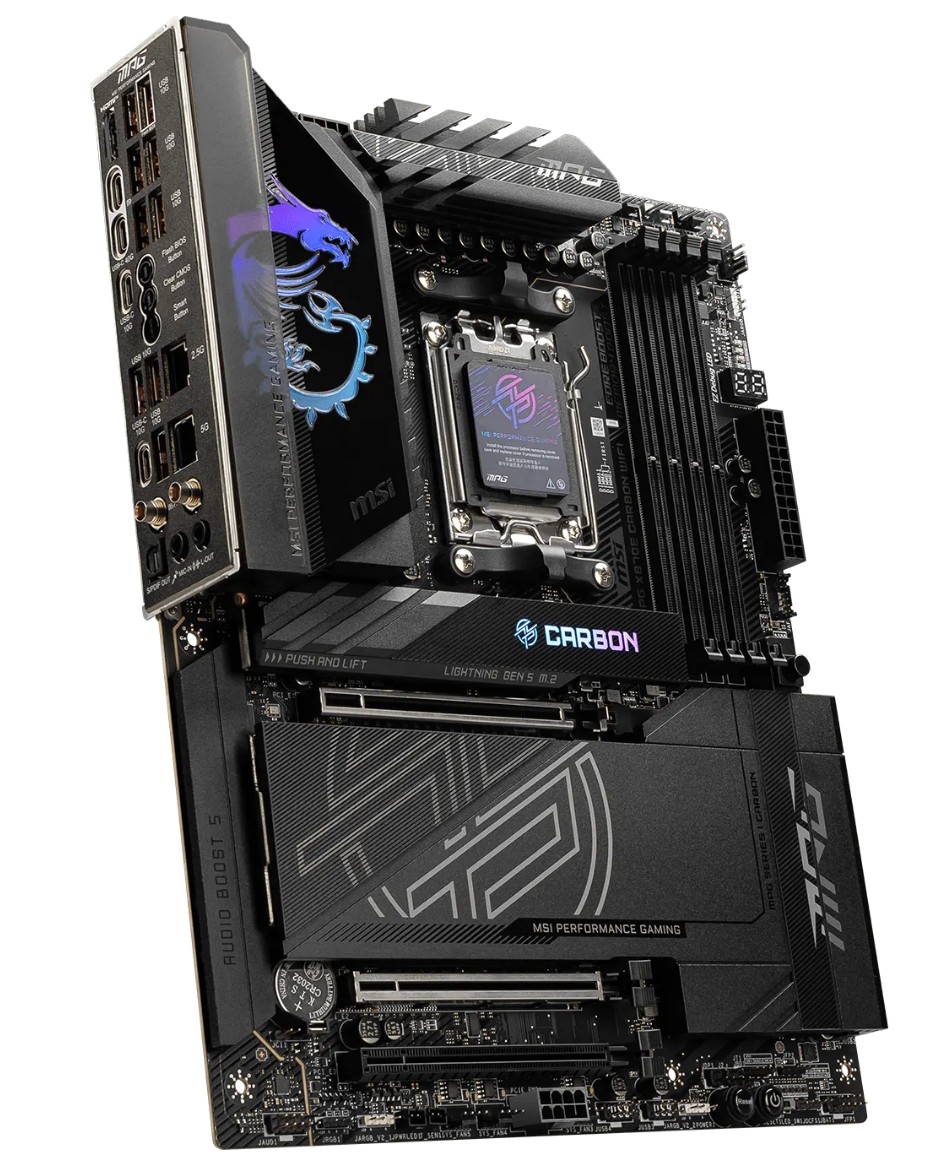

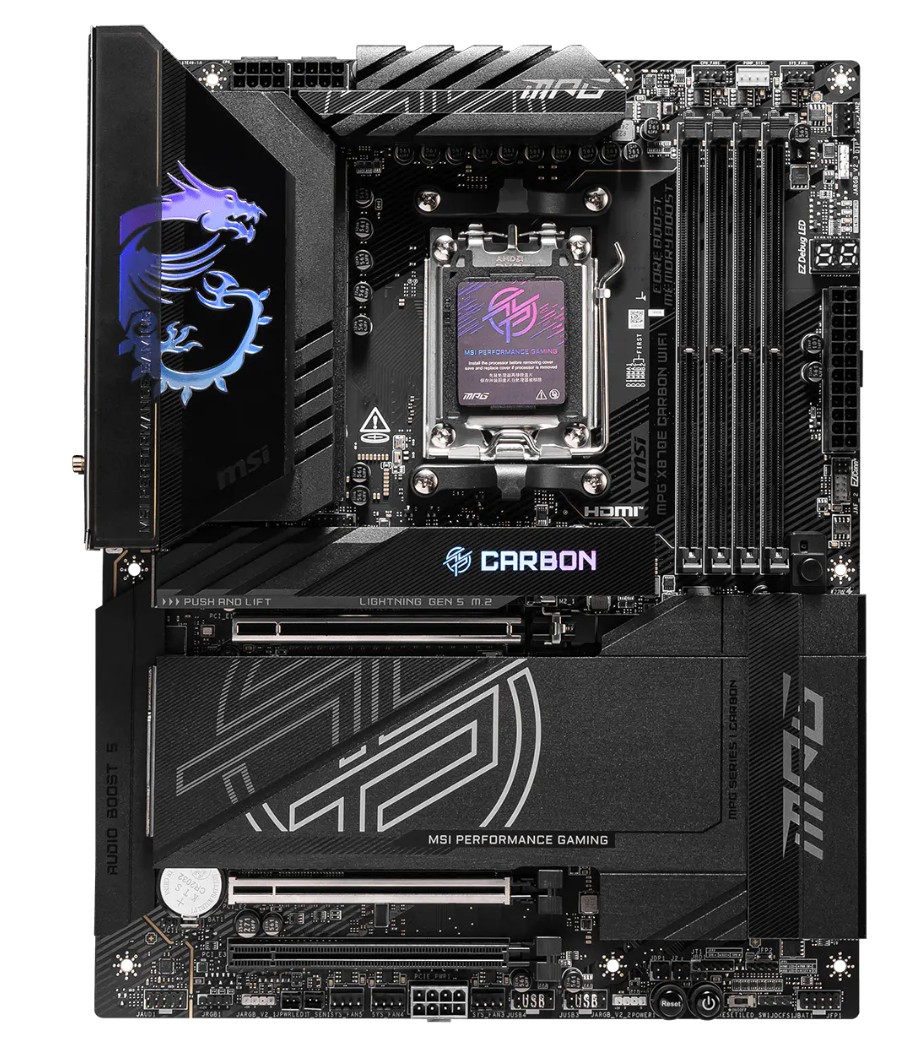

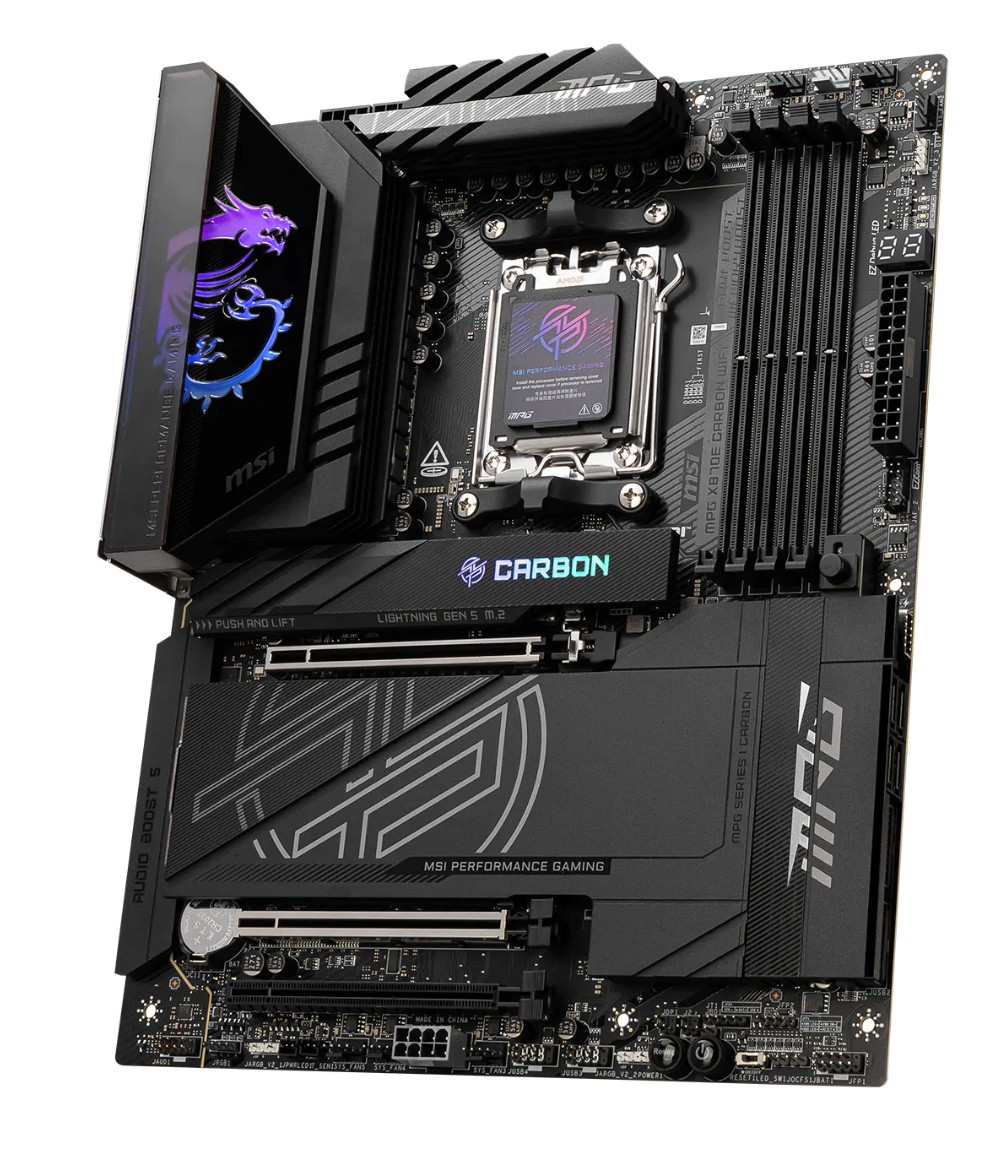

MSI MPG X870E CARBON WIFI
Chipset: AMD X870E
Rozměrový formát: ATX 243.84mmx304.8mm
Podpora pro procesory: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Patice procesoru: AM5
Paměť:
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Ryzen 9000 Series Processors max. overclocking:
- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 6400+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPOTM
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
Grafické porty:
1x HDMI™
- Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
- USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
Zvuková karta:
- Realtek ALC4080 Codec
- 7.1-Channel USB High-Performance Audio
- Supports up to 32-Bit/384 kHz playback on front panel
- Supports S/PDIF output
Ethernet:
- 1x Realtek® 8126 5G LAN
- 1x Realtek® 8125 2.5G LAN
WLAN + Bluetooth: Wi-Fi 7 Solution
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth® 5.4**, MLO, 4KQAM
Rozšiřující sloty:
3x PCI-E x16 slot (Qty)
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 & PCI_E2 slots
- Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
PCI_E3 slot
- Supports up to PCIe 4.0 x4
RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10
Úložný prostor: 4x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G (Qty)
- M.2_1 slot
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2* slot
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors
M.2_3 slot
- Supports up to PCIe 4.0 x4
M.2_4 slot
- Supports up to PCIe 4.0 x4
USB:
Zadní USB
- 9x USB 10Gbps Type A
- 2x USB 10Gbps Type C
- 2x USB 40Gbps Type C
Přední USB
- 4x USB 2.0
- 4x USB 5Gbps Type A
- 1x USB 20Gbps Type C
Interní porty: Napájení
- 1× Power Connector (ATX_PWR)
- 2× Power Connector (CPU_PWR)
- 1× Power Connector (PCIE_PWR 8pin)
- 1× CPU Fan
- 1× PUMP_SYS Fan
- 5× System Fan
USB
- 4× USB 2.0 ports
- 4× USB 5Gbps Type-A ports
- 1× USB 20Gbps Type-C port
Ostatní
- 1× ARGB + FAN + USB 2.0 Header (JAF_2)
- 2× Front Panel (JFP)
- 1× Chassis Intrusion (JCI)
- 1× Front Audio (JAUD)
- 1× Thermal Sensor connector (T_SEN)
- 3× Addressable V2 RGB LED connectors (JARGB_V2)
- 1× RGB LED connector (JRGB)

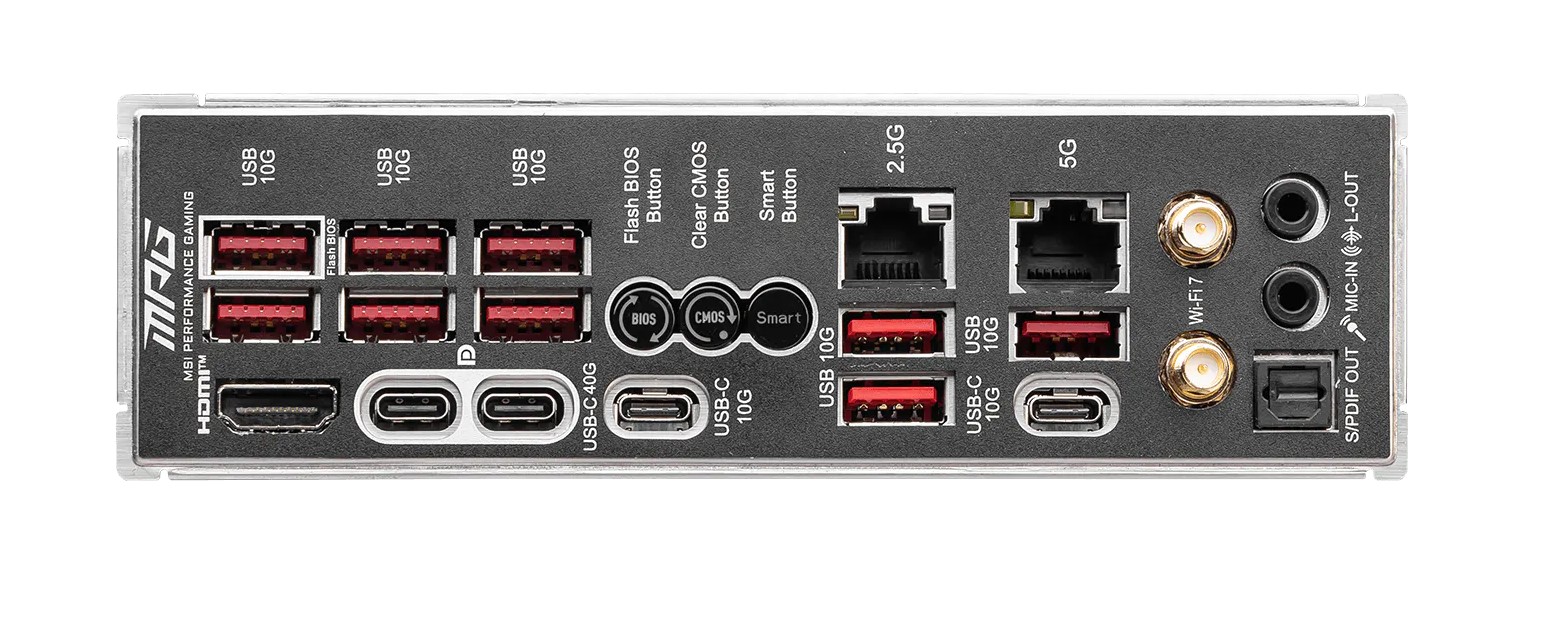

Porty na zadním panelu:
- USB 10Gbps Type-A
- Flash BIOS Button
- Clear CMOS Button
- Smart Button
- 2.5G LAN
- 5G LAN
- Audio Connectors
- HDMI™
- USB 40Gbps Type-C
- USB 10Gbps Type-C
- USB 10Gbps Type-A
- USB 10Gbps Type-C
- Wi-Fi / Bluetooth
- Optical S/PDIF Out
OS: Windows 11 64-bit
