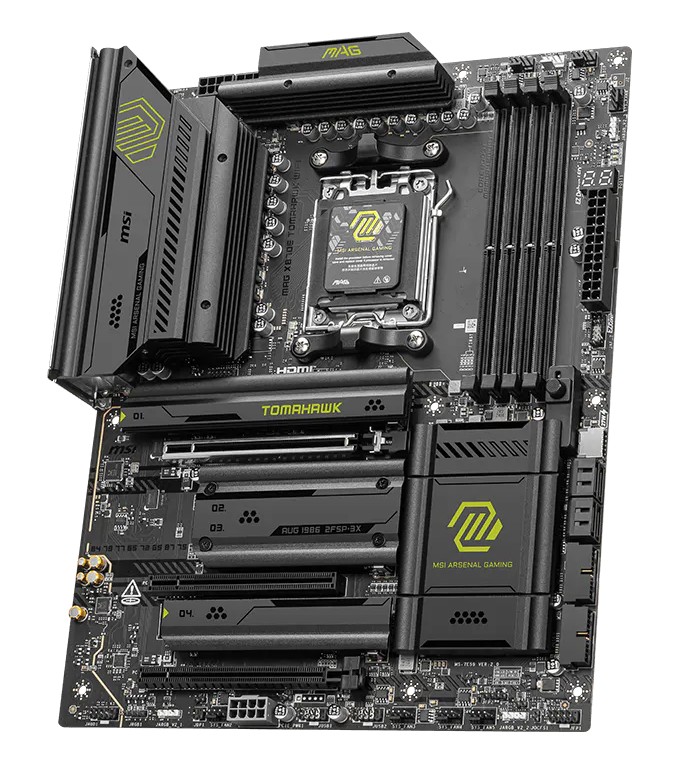

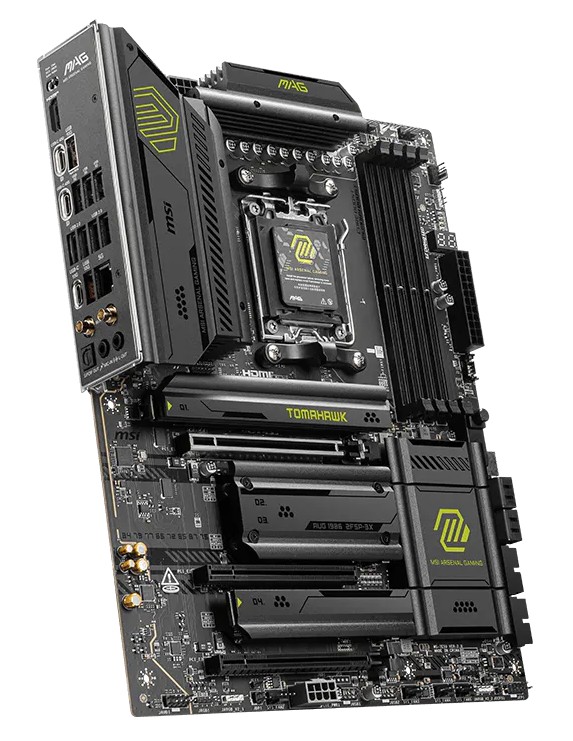

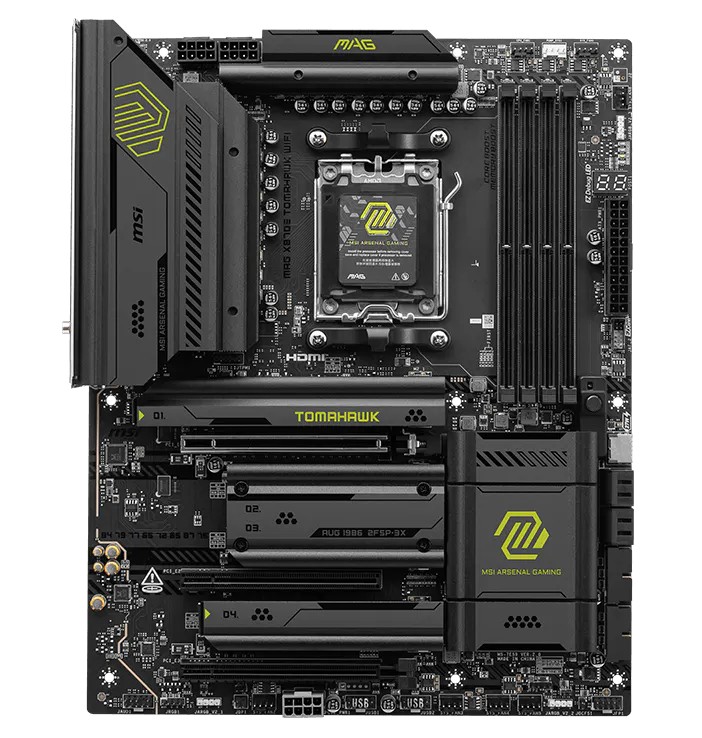

MSI MAG X870E TOMAHAWK WIFI

Chipset: AMD X870E
Rozměrový formát: ATX 243.84mmx304.8mmPodpora pro procesory: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Patice procesoru: AM5

Paměť:

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPO™
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory

Grafické porty:

1x HDMI

• Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*

2x Type-C DisplayPort

• USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

Zvuková karta:

• Realtek® ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-bit/384kHz playback on front panel
• Supports S/PDIF output

Ethernet: 1x Realtek® 8126 5G LAN

WLAN + Bluetooth: Wi-Fi 7

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM

Rozšiřující sloty:

3x PCI-E x16 slot (Qty)

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný prostor:

4x M.2 (Qty)

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
• M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G (Qty)

• M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M.2_2 slot (From CPU)

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

USB:

Zadní USB

• 4x USB 2.0
• 3x USB 5Gbps Type A
• 2x USB 10Gbps Type A
• 1x USB 10Gbps Type C
• 2x USB 40Gbps Type C

Přední USB

• 4x USB 2.0
• 4x USB 5Gbps Type A
• 1x USB 20Gbps Type C

Interní porty:

Napájení

• 1× Power Connector (ATX_PWR)
• 2× Power Connector (CPU_PWR)
• 1× Power Connector (PCIE_PWR 8pin)
• 1× CPU Fan
• 1× PUMP_SYS Fan
• 6× System Fan

USB

• 4× USB 2.0 ports
• 4× USB 5Gbps Type-A ports
• 1× USB 20Gbps Type-C port

Ostatní

• 1× ARGB + FAN + USB 2.0 Header (JAF_2)
• 2× Front Panel (JFP)
• 1× Chassis Intrusion (JCI)
• 1× Front Audio (JAUD)
• 3× Addressable V2 RGB LED connectors (JARGB_V2)
• 1× RGB LED connector (JRGB)
• 1× TPM pin header (TPM 2.0)

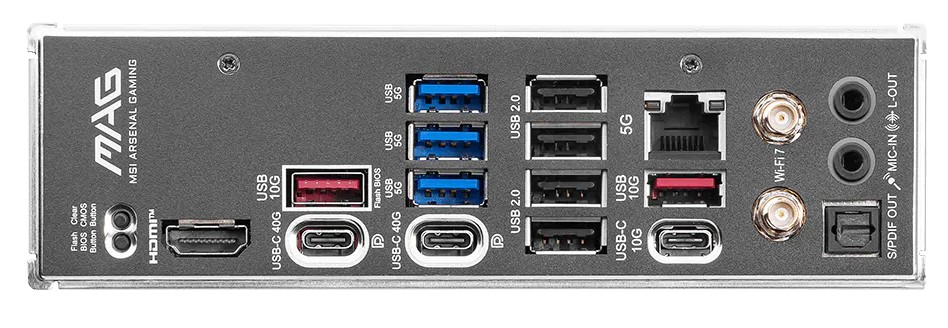

Porty na zadním panelu:

• Clear CMOS Button
• USB 10Gbps Type-A
• USB 5Gbps Type-A
• USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• Audio connectors
• Flash BIOS Button
• HDMI™
• USB 40Gbps Type-C
• USB 10Gbps Type-C
• USB 10Gbps Type-A

OS: Windows 11 64-bit
