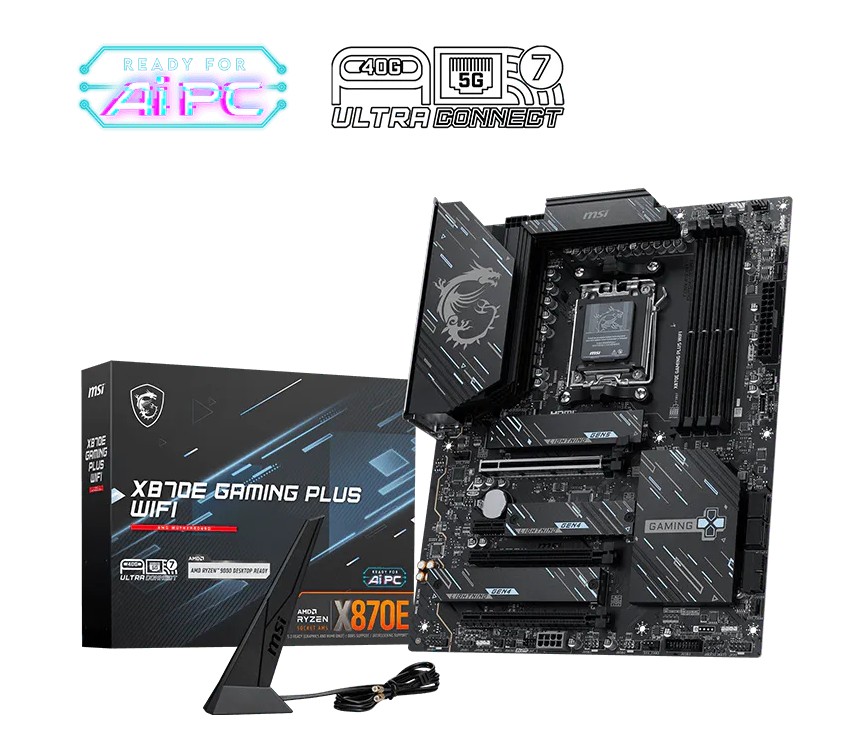

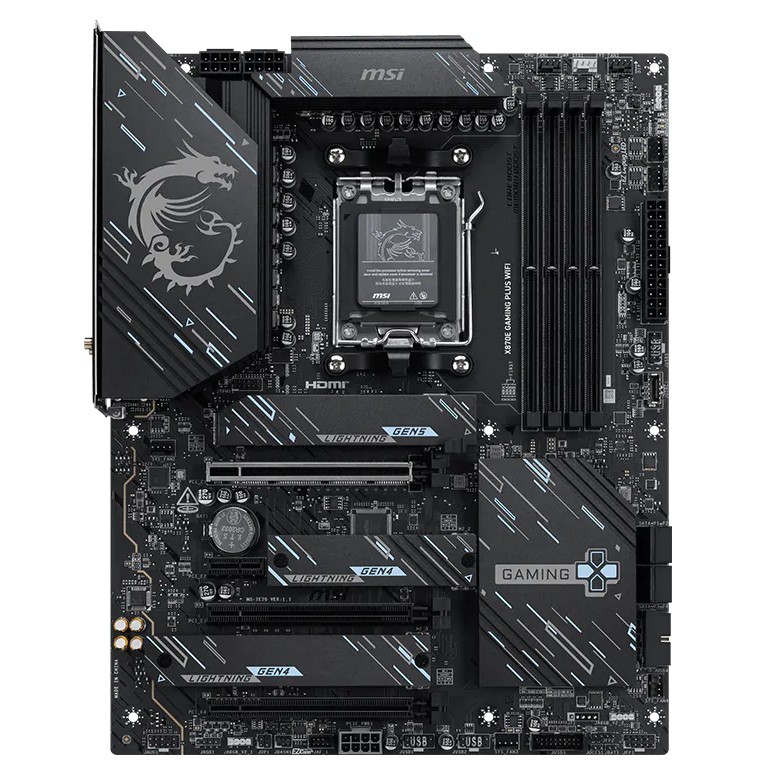

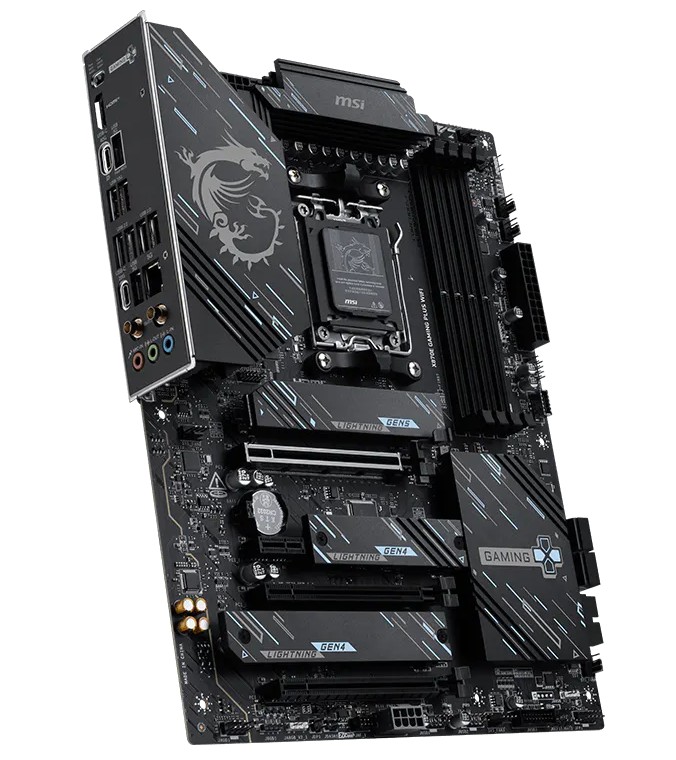

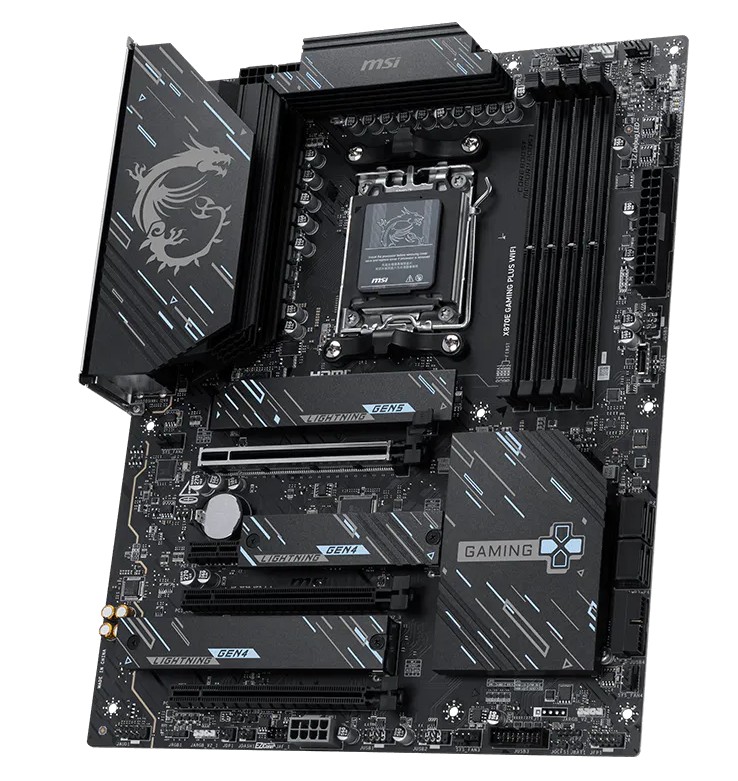

MSI X870E GAMING PLUS WIFI
Chipset: AMD X870E
Rozměrový formát: ATX 243.84mmx304.8mm
Podpora pro procesory: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Patice procesoru: AM5
Paměť:
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Ryzen™ 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 6000+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPOTM
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
Grafické porty:
1x HDMI
- Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
- USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
Zvuková karta:
- Realtek® ALC897
- 7.1-Channel High Definition Audio
Ethernet: Realtek® 8126VB 5G LAN
WLAN + Bluetooth: Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth® 5.4**, MLO, 4KQAM
Rozšiřující sloty:
3x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
- Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10
Úložný prostor:
3x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
4x SATA 6G (Qty)
M2_1 slot
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
USB:
Zadní USB
- 4x USB 2.0
- 2x USB 5Gbps Type A
- 2x USB 10Gbps Type A
- 1x USB 20Gbps Type C
- 1x USB 40Gbps Type C
Přední USB
- 6x USB 2.0
- 4x USB 5Gbps Type A
- 1x USB 10Gbps Type C
Interní porty:
Napájení
- 1× Power Connector (ATX_PWR)
- 2× Power Connector (CPU_PWR)
- 1× Power Connector (PCIE_PWR 8pin)
- 1× CPU Fan
- 1× PUMP_SYS Fan
- 6× System Fan
USB
- 6× USB 2.0 ports
- 4× USB 5Gbps Type-A ports
- 1× USB 10Gbps Type-C port
Ostatní
- 1× ARGB + FAN Header (JAF_1)
- 2× Front Panel (JFP)
- 1× Chassis Intrusion (JCI)
- 1× Front Audio (JAUD)
- 1× Tuning Controller connector (JDASH)
- 3× Addressable V2 RGB LED connectors (JARGB_V2)
- 1× RGB LED connector (JRGB)
- 1× TPM pin header (TPM 2.0)

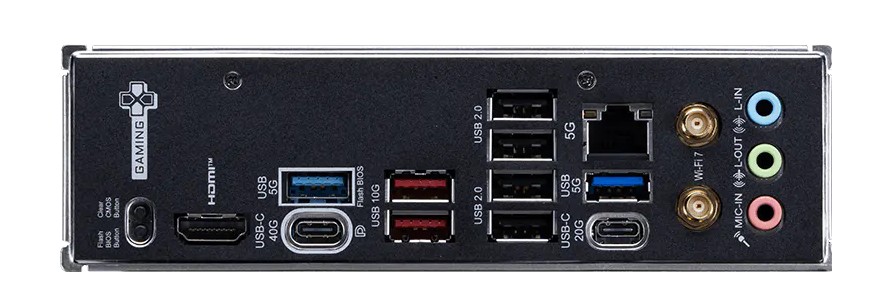

Porty na zadním panelu:
- Clear CMOS Button
- USB 5Gbps Type-A
- USB 10Gbps Type-A
- USB 2.0
- 5G LAN
- Wi-Fi / Bluetooth
- Audio connectors
- Flash BIOS Button
- HDMI™
- USB 40Gbps Type-C
- USB 2.0
- USB 20Gbps Type-C
- USB 5Gbps Type-A
OS: Windows 11 64-bit
