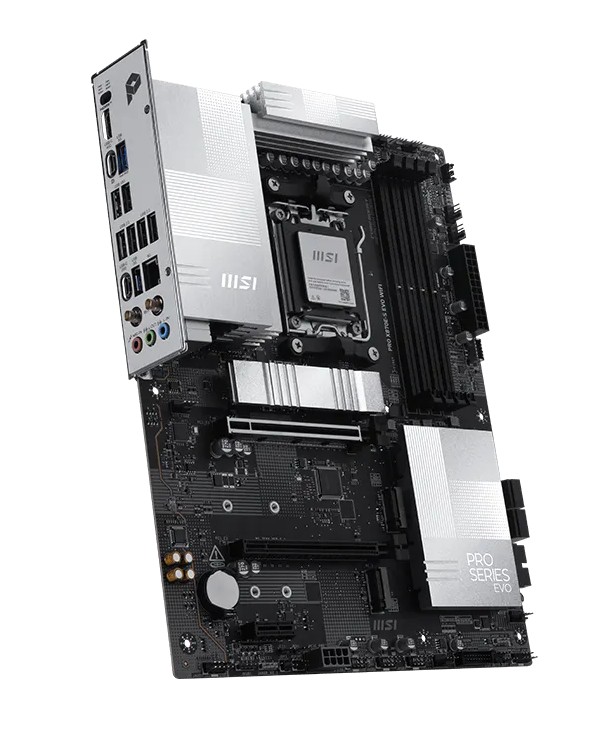

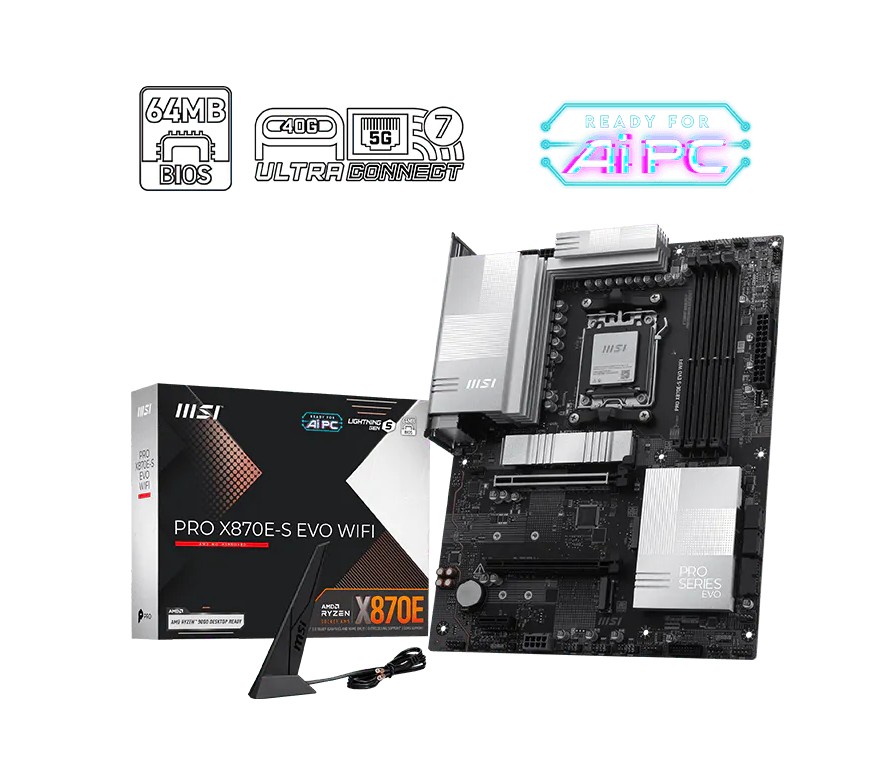

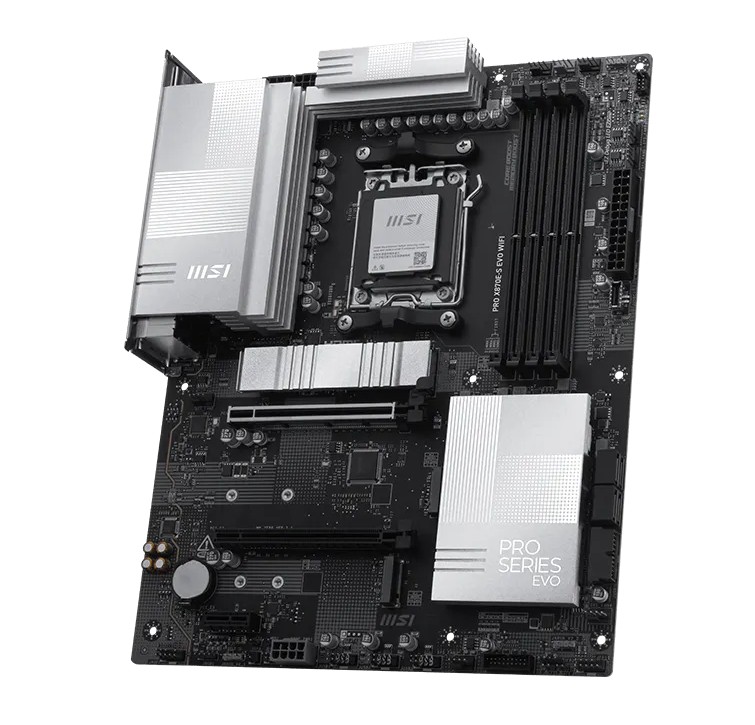

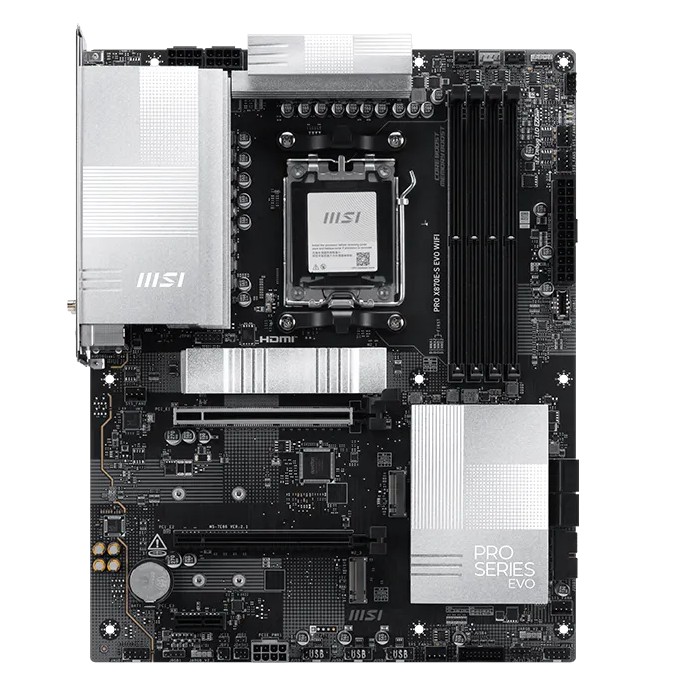

MSI PRO X870E-S EVO WIFI

Chipset: AMD X870E
Rozměrový formát: ATX 304.8mmx243.84mmPodpora pro procesory: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Patice procesoru: AM5

Paměť:

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Ryzen™ 9000 Series Processors max. overclocking:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPOTM
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory

Grafické porty: 1x HDMI™

• Support HDMITM 2.1 with TMDS port, maximum resolution of 4K 60Hz*

1x Type-C DisplayPort

• USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz

Zvuková karta:

• Realtek® ALC897
• 7.1-Channel High Definition Audio

Ethernet: Realtek® 8126VB 5G LAN

WLAN + Bluetooth: Wi-Fi 7

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM

Rozšiřující sloty: 2x PCI-E x16 slot1x PCI-E x1 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)

RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný prostor: 3x M.2

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6GM2_1 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

USB:

Zadní USB

• 4x USB 2.0
• 2x USB 5Gbps Type A
• 2x USB 10Gbps Type A
• 1x USB 20Gbps Type C
• 1x USB 40Gbps Type C

Přední USB

• 6x USB 2.0
• 4x USB 5Gbps Type A
• 1x USB 10Gbps Type C

Interní porty:

Napájení

• 1× Power Connector (ATX_PWR)
• 2× Power Connector (CPU_PWR)
• 1× Power Connector (PCIE_PWR 8pin)
• 1× CPU Fan
• 1× Combo Fan (Pump_Sys Fan)
• 6× System Fan

USB

• 6× USB 2.0 ports
• 4× USB 5Gbps Type-A ports
• 1× USB 10Gbps Type-C port

Ostatní

• 2× Front Panel (JFP)
• 1× Chassis Intrusion (JCI)
• 1× Front Audio (JAUD)
• 1× Tuning Controller connector (JDASH)
• 3× Addressable V2 RGB LED connectors (JARGB_V2)
• 1× RGB LED connector (JRGB)
• 1× TPM pin header (TPM 2.0)

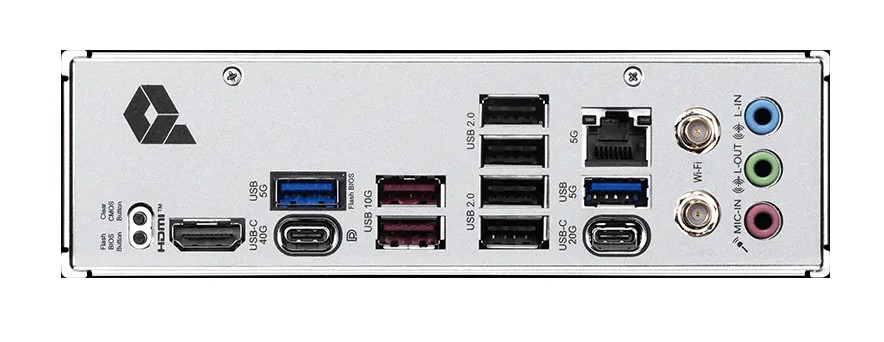

Porty na zadním panelu:

• Clear CMOS Button
• USB 5Gbps Type-A
• USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• Audio connectors
• Flash BIOS Button
• HDMI™
• USB 40Gbps Type-C
• USB 10Gbps Type-A
• USB 20Gbps Type-C
• USB 5Gbps Type-A

OS: Windows 11 64-bit
