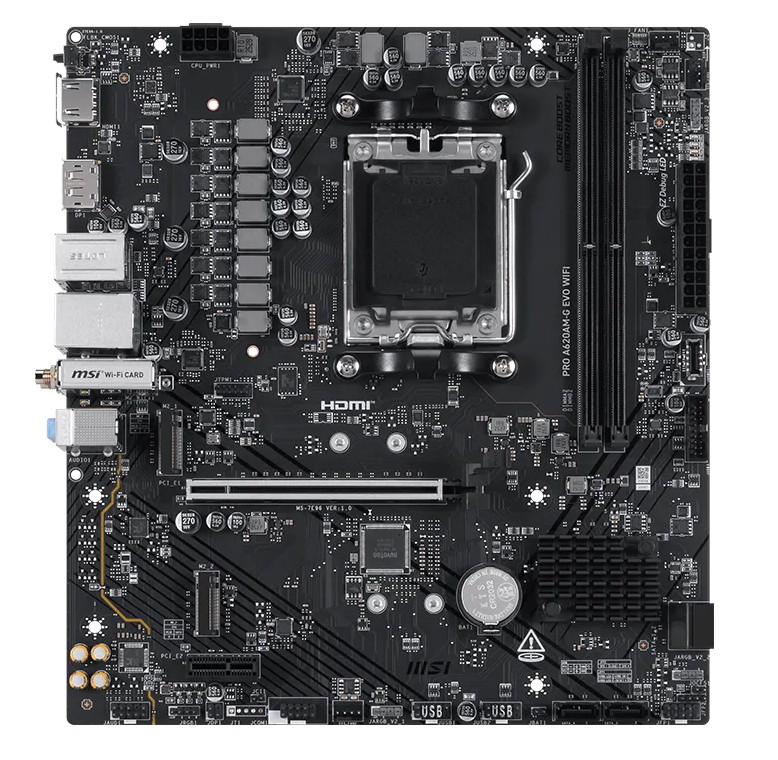

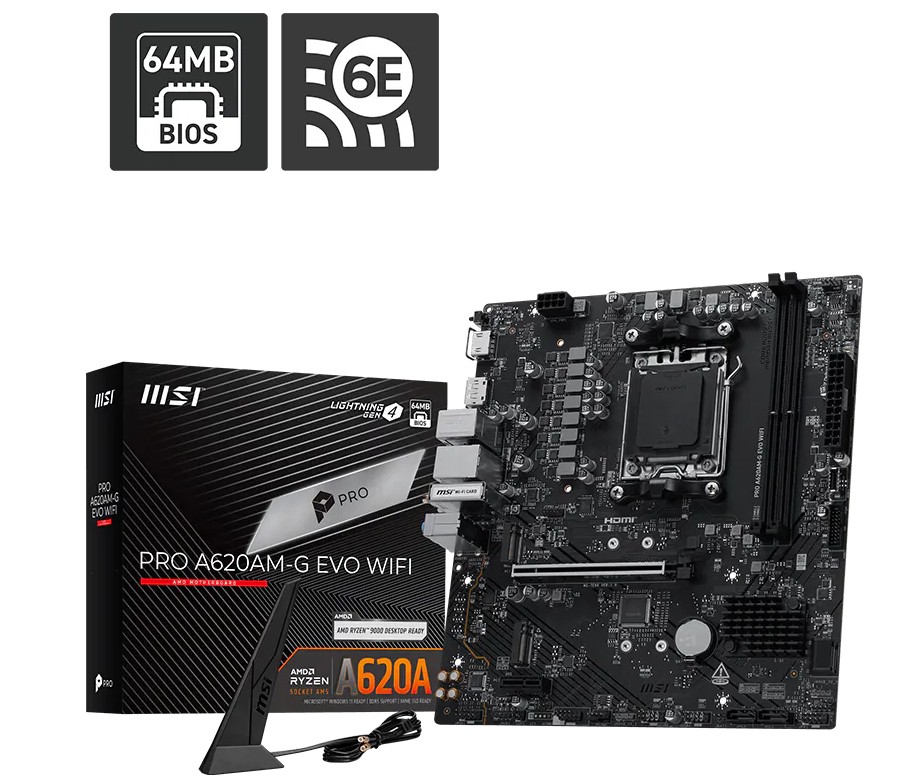

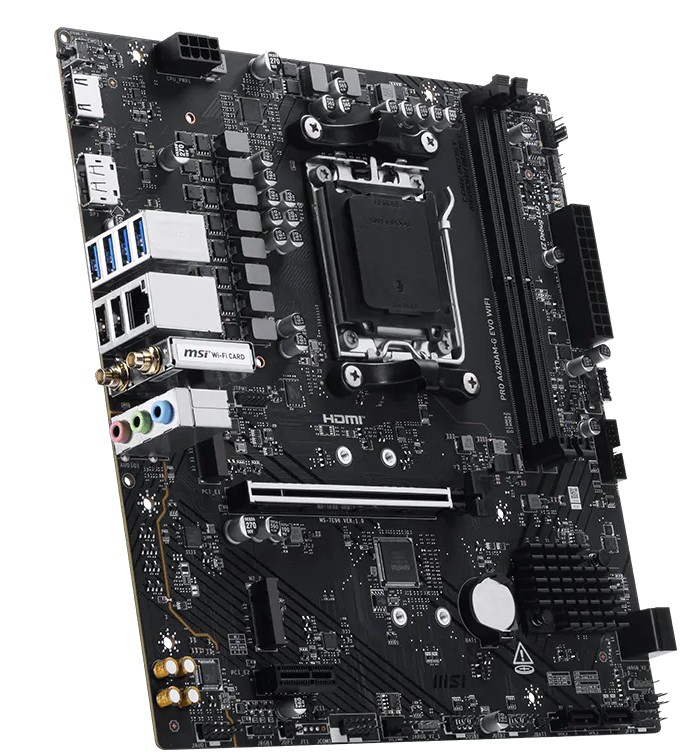

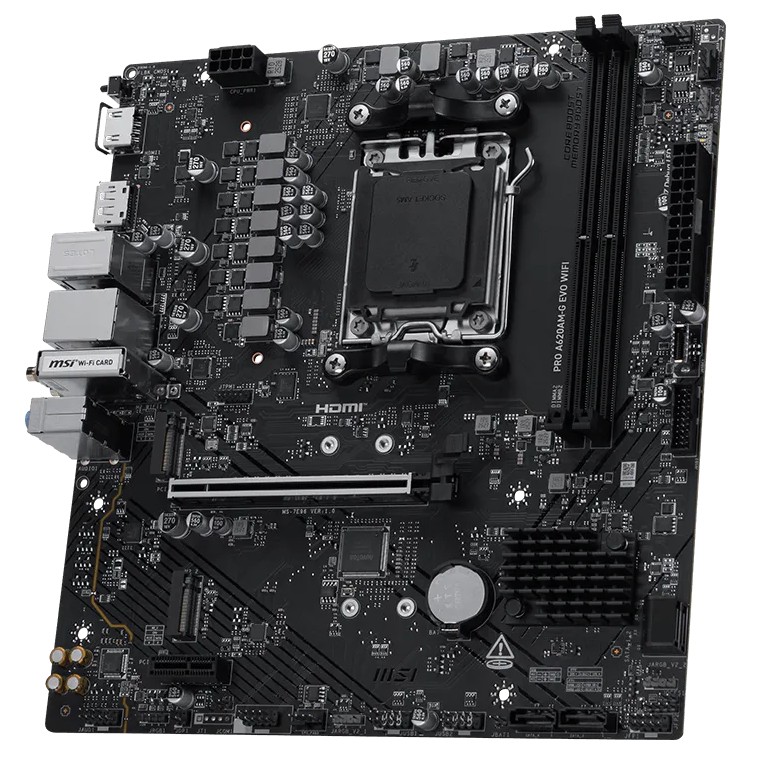

MSI PRO A620AM-G EVO WIFI
Chipset: AMD A620A
Rozměrový formát: mATX 226mmx243.84mm
Podpora pro procesory: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Patice procesoru: AM5
Paměť:
- 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
- Memory Support DDR5 7200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Max. overclocking:
- 1DPC 1R Max speed up to 7200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPO™
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
Grafické porty:
1x HDMI
- Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
- Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Zvuková karta:
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Ethernet: Realtek® RTL8125D 2.5G LAN
WLAN + Bluetooth: Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3**, FIPS, FISMA
Rozšiřující sloty:
- 1x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
RAID řadič: RAID 0, RAID 1, RAID 10
Úložný prostor:
2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_2 slot
- Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
- Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
USB:
Zadní USB
- 2x USB 2.0
- 4x USB 5Gbps Type A
Přední USB
- 4x USB 2.0
- 2x USB 5Gbps Type A
- 1x USB 5Gbps Type C
Interní porty:
Napájení
- 1× Power Connector (ATX_PWR)
- 1× Power Connector (CPU_PWR)
- 1× CPU Fan
- 2× System Fan
USB
- 4× USB 2.0 ports
- 2× USB 5Gbps Type-A ports
- 1× USB 5Gbps Type-C port
Ostatní
- 2× Front Panel (JFP)
- 1× Chassis Intrusion (JCI)
- 1× Front Audio (JAUD)
- 1× COM Port (JCOM)
- 3× Addressable V2 RGB LED connectors (JARGB_V2)
- 1× RGB LED connector (JRGB)
- 1× TPM pin header (TPM 2.0)

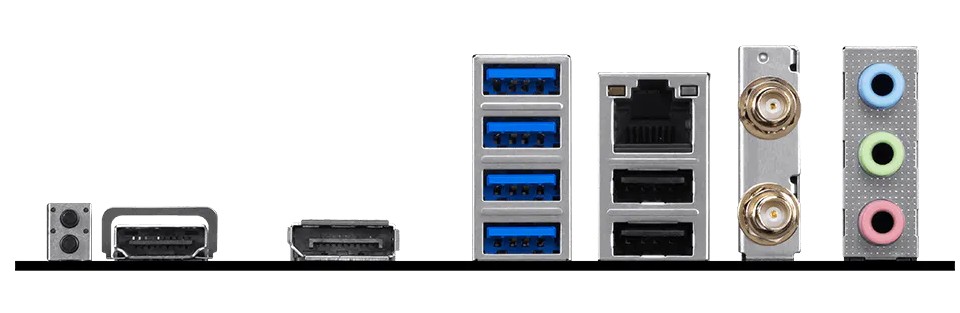

Porty na zadním panelu:
- Clear CMOS Button
- HDMI
- DisplayPort
- USB 5Gbps Type-A
- 2.5G LAN
- Wi-Fi / Bluetooth
- Audio connectors
- Flash BIOS Button
- USB 2.0
OS: Windows 11 64-bit, Windows 10 64-bit
