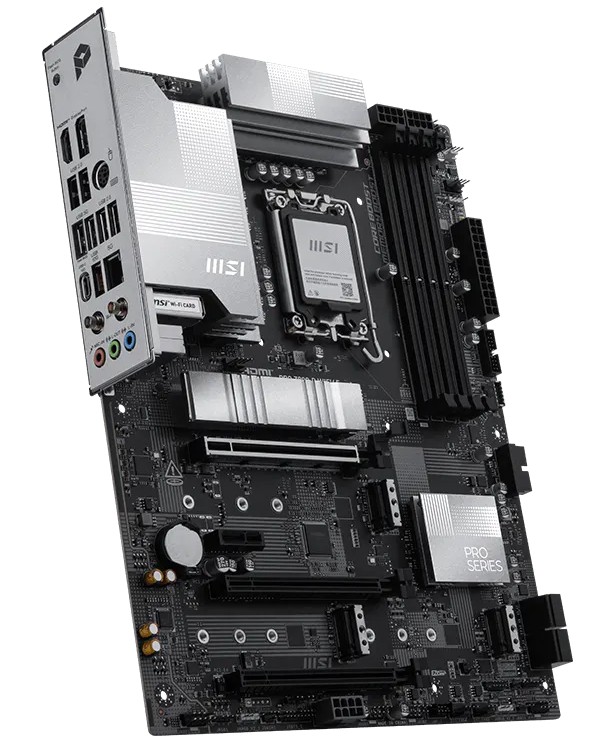

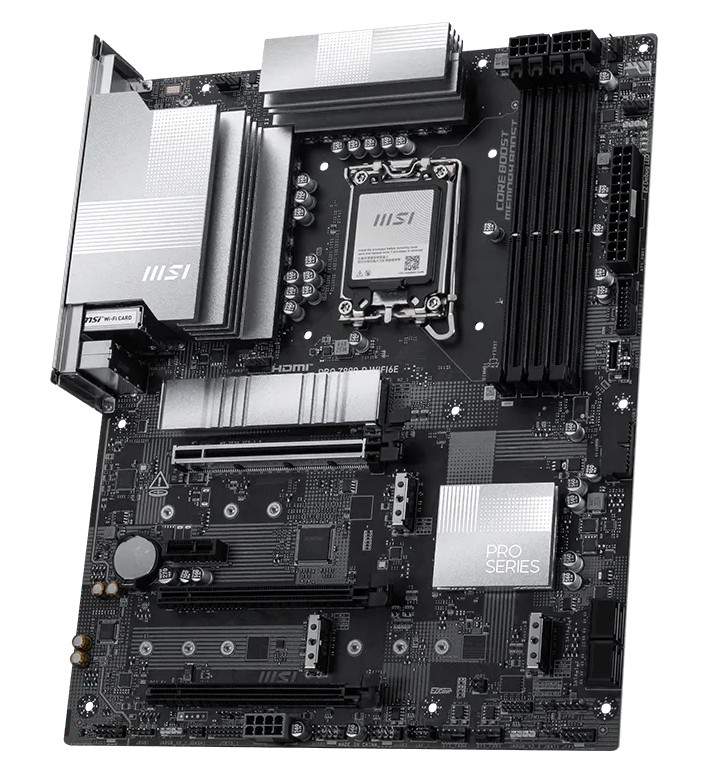

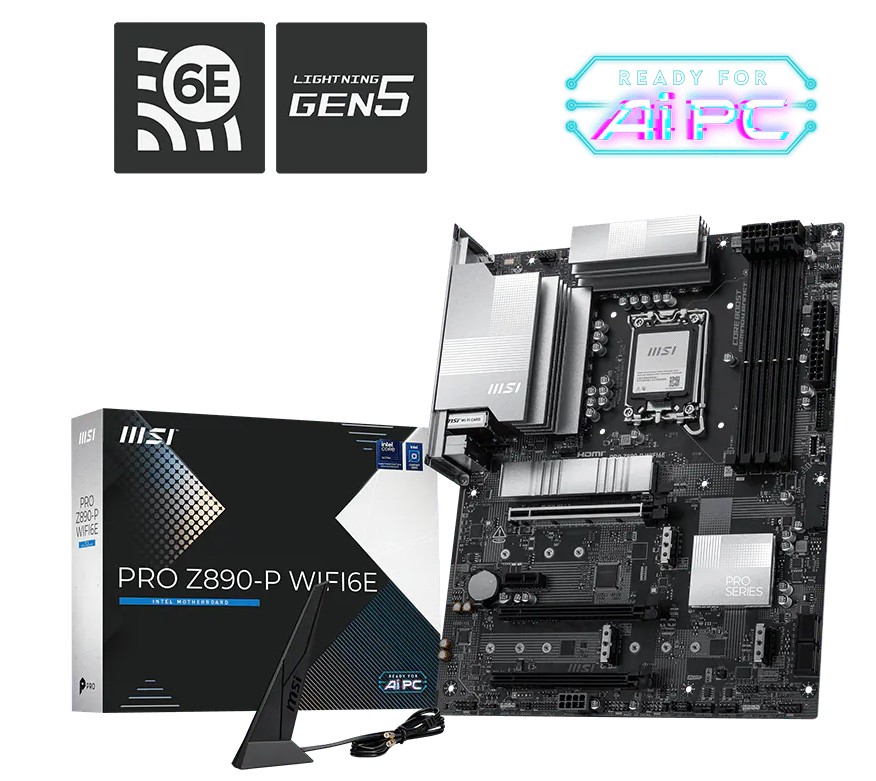

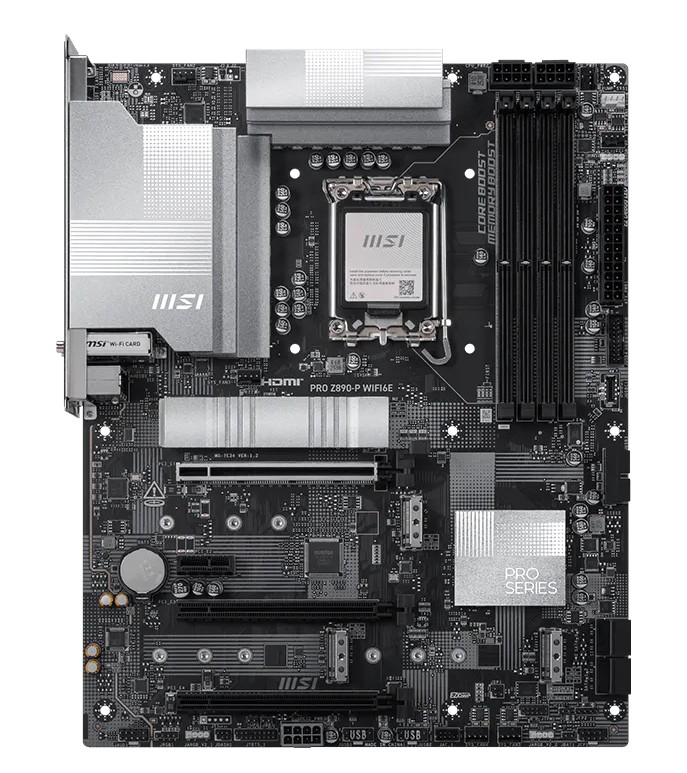

MSI PRO Z890-P WIFI6E
Chipset: INTEL Z890
Rozměrový formát: ATX 243.84mmx304.8mm
Podpora pro procesory: Supports Intel® Core™ Ultra Processors (Series 2)
Patice procesoru: LGA 1851
Paměť:
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
- Max. overclocking:
- 1DPC 1R Max speed up to 9200+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 5600+ MT/s
- Supports Intel® POR Speed and JEDEC Speed
- Supports Memory Overclocking and Intel® XMP 3.0
- Supports Dual-Controller Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM
Grafické porty:
1x HDMI
- Support HDMI™ 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
- Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Zvuková karta:
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Ethernet: Realtek® 8126 5Gbps LAN
WLAN + Bluetooth: Wi-Fi 6E module
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3**, FIPS, FISMA
Rozšiřující sloty:
3x PCI-E x16 slot
1x PCI-E x1 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10
Úložný prostor:
4x M.2
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
USB:
Zadní USB
- 4x USB 2.0
- 2x USB 5Gbps Type A
- 1x USB 10Gbps Type A
- 1x USB 10Gbps Type C
Přední USB
- 4x USB 2.0
- 4x USB 5Gbps Type A
- 1x USB 20Gbps Type C
Interní porty:
Napájení
- 1× Power Connector (ATX_PWR)
- 2× Power Connector (CPU_PWR)
- 1× Power Connector (PCIE_PWR 8pin)
- 1× CPU Fan
- 1× Combo Fan (Pump_Sys Fan)
- 5× System Fan
USB
- 4× USB 2.0 ports
- 4× USB 5Gbps Type-A ports
- 1× USB 20Gbps Type-C port
Ostatní
- 2× Front Panel (JFP)
- 1× Chassis Intrusion (JCI)
- 1× Front Audio (JAUD)
- 1× Tuning Controller connector (JDASH)
- 3× Addressable V2 RGB LED connectors (JARGB_V2)
- 1× RGB LED connector (JRGB)
- 1× TPM pin header (TPM 2.0)

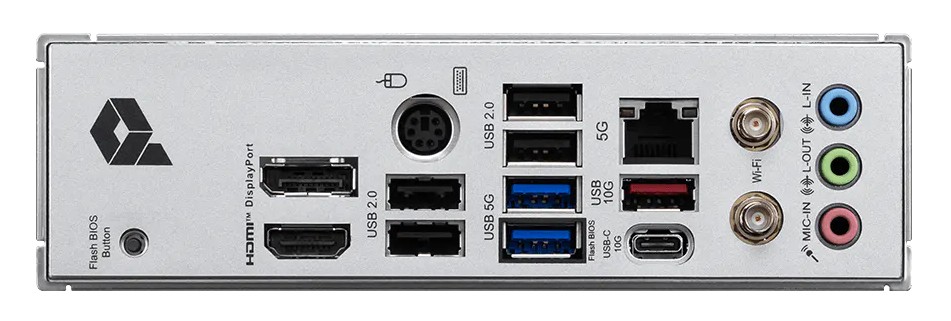

Porty na zadním panelu:
- DisplayPort
- Mouse / Keyboard
- USB 2.0
- 5G LAN
- Wi-Fi / Bluetooth
- Audio Connectors
- Flash BIOS Button
- HDMI™
- USB 2.0
- USB 5Gbps Type-A
- USB 10Gbps Type-C
- USB 10Gbps Type-A
OS: Windows 11 64-bit
