OVERVIEW

High speed. Big range. Serious durability.

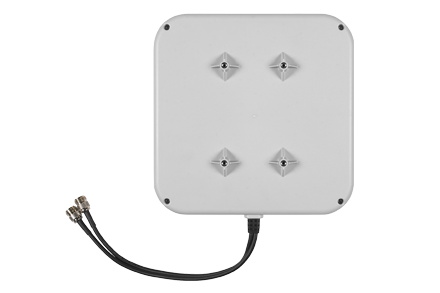

Optimal for building-to-building deployments outdoors or floor-to-floor connectivity indoors, boost your RF signal in a specific direction for long range point-to-point connections with ProSAFE® 10 DBI Directional antenna at wireless 802.11n speeds.

NETGEAR Warranty

• This product is backed by a NETGEAR limited 1-year Hardware Warranty.
• http://www.netgear.com/about/warranty/
• ProSupport Lifetime 24x7 Advanced Technical Support. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).

TECH SPECS

Product Number

• ANT224D10

Wireless Signal

• IEEE 802.11g

Typical Application

• Indoor/outdoor

Maximum Outdoor Range*

• 8.5 km (5.28 miles)

Frequency Range

• 2400 - 2500 MHz

Gain**

• 10 dBi

Beam Width

• Horizontal 33° Vertical 32°

Polarization

• Linear; Vertical

Operating Temperature

• from -30o to 80o C

Dimensions

• 240 x 240 x 40 mm

Weight

• 0.7 kg

Connectors

• Antenna - N Jack Male
• Lightening Arrestor - N Jack Male to N Jack Male
• Extended Cable - N Plug Female

Package Contents

• NETGEAR ProSafe Indoor/ Outdoor 10 dB 2x2 Directional Antenna ANT224D10
• 2 lightning arrestors with 30 cm low-loss cables
• 2 reverse N/SMA adapter
• Wall mount and pole mounting hardware
• Installation Guide and Warranty/ Support card

Ordering Information (all regions)

• ANT224D10-10000S

WEBSITE

• Technical specification: http://www.netgear.co.uk/business/products/wireless/accessories/ant224d10.aspx#tab-techspecs
