8-Port 10/100/1000Mbps Desktop Switch
OVERVIEW
The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.
FEATURES
- Innovative energy-efficient technology saves power up to 72%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Steel design, desktop or wall-mounting design
- Supports QoS (IEEE 802.1p) function
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 9K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
- Fanless design ensures quiet operation

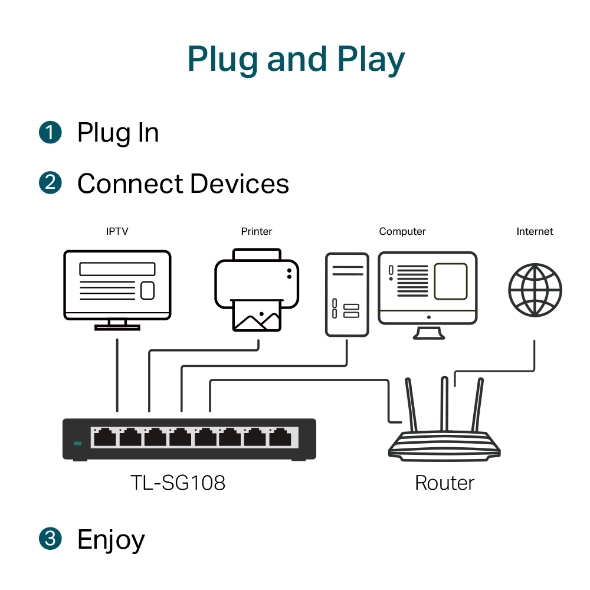

- Plug and Play design simplifies installation
HARDWARE FEATURES
Standards and Protocols
- IEEE 802.3/802.3u/ 802.3ab/ 802.3x
- CSMA/CD
Interface
- 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
External Power Supply
Dimensions (W X D X H)
Fan Quantity
LED Indicator
- System Power
- Link, Speed and activity indicators per port built into each RJ-45 port
SOFTWARE FEATURES
Advanced Features
- Green Technology,saving power up to 72%
- 802.3X Flow Control
- Supports QoS (IEEE802.1P)
Transfer Method
OTHERS
Certification
Package Contents
- 8-Port 10/100/1000Mbps Desktop Switch
- Power Adapter
- User Guide
System Requirements
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, Mac® OS, NetWare®, UNIX® or Linux.
